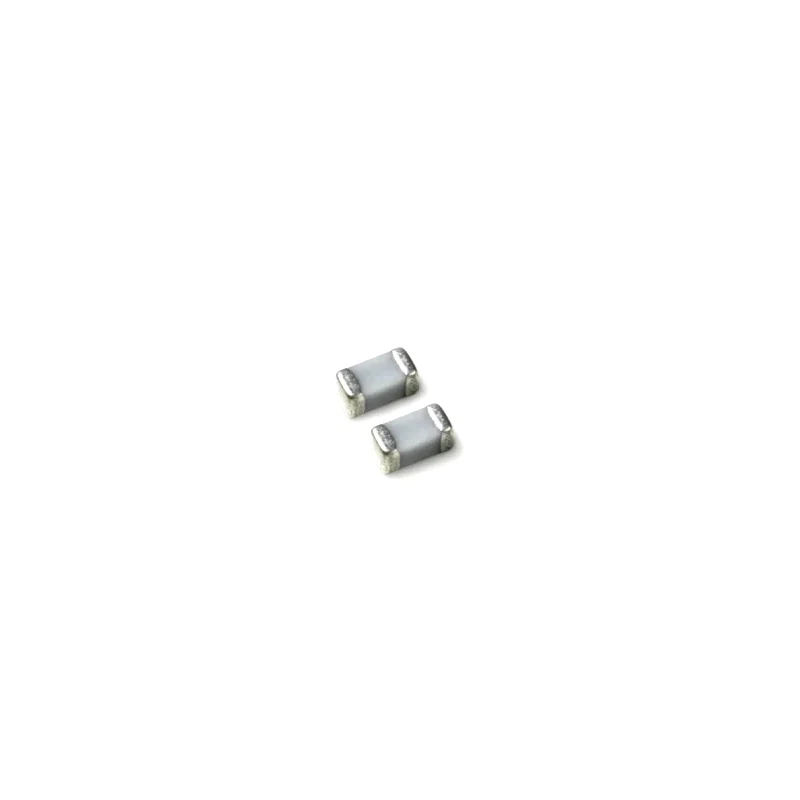

Multilayer Chip Ceramic Inductor | CH0603
Ceramic chip inductors (multilayer structure) are suitable for high-frequency applications in various electronic systems, such as signal shaping and RF filtering. Zhenhua offers a wide range of high-frequency ceramic inductors in various sizes and specifications, featuring extremely low core loss, high Q value, and low inductance. Multilayer ceramic chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and compared to wire-wound inductors, multilayer chip inductors offer lower cost and smaller size. Ceramic high-frequency chip inductors feature high frequency, high self-resonant frequency (SRF), excellent Q value, and superior temperature stability. They provide stable inductance values in high-frequency circuits. The high-stability design meets the requirements of critical applications.
For any inquiries, please contact us at info@smdindutcor.com.
Zhenhua provides stock, pricing, and specifications information for multilayer ceramic chip inductors.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- High self-resonant frequency.
- OPERATING TEMP: -55℃ ~ +125℃
- Monolithic Structure for high reliability, Small size inductor.
- Excellent solderability and high heat resistance, High Q factor.
Applications
- Mobile communication equipment terminal.
- High-frequency circuit, intermediate increase circuit.
- RF circuit in telecommunication and other equipment.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||||
| L | W | T | a | A | B | C | |||||
| CH0603H1N0 | 1.0 | 10000 | 0.07 | 800 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H1N2 | 1.2 | 10000 | 0.10 | 800 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H1N5 | 1.5 | 10000 | 0.10 | 650 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H1N8 | 1.8 | 10000 | 0.15 | 650 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H2N2 | 2.2 | 7500 | 0.15 | 650 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H2N7 | 2.7 | 7500 | 0.20 | 550 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H3N3 | 3.3 | 7500 | 0.25 | 450 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H3N9 | 3.9 | 6500 | 0.25 | 400 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H4N7 | 4.7 | 6000 | 0.40 | 350 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H5N6 | 5.6 | 5000 | 0.40 | 350 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H6N8 | 6.8 | 4500 | 0.50 | 300 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H8N2 | 8.2 | 4000 | 0.50 | 250 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
| CH0603H10N | 10 | 4000 | 0.70 | 250 | 0.6±0.03 | 0.3±0.03 | 0.3±0.03 | 0.15±0.05 | 0.30 | 0.25 | 0.30 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
CH Series Multilayer Chip Ceramic Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
