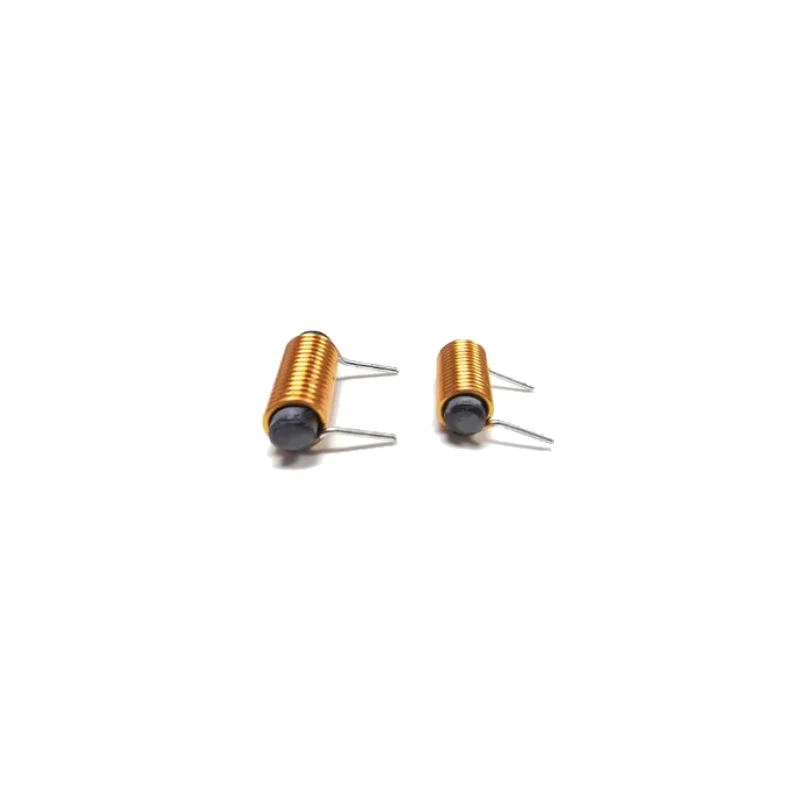

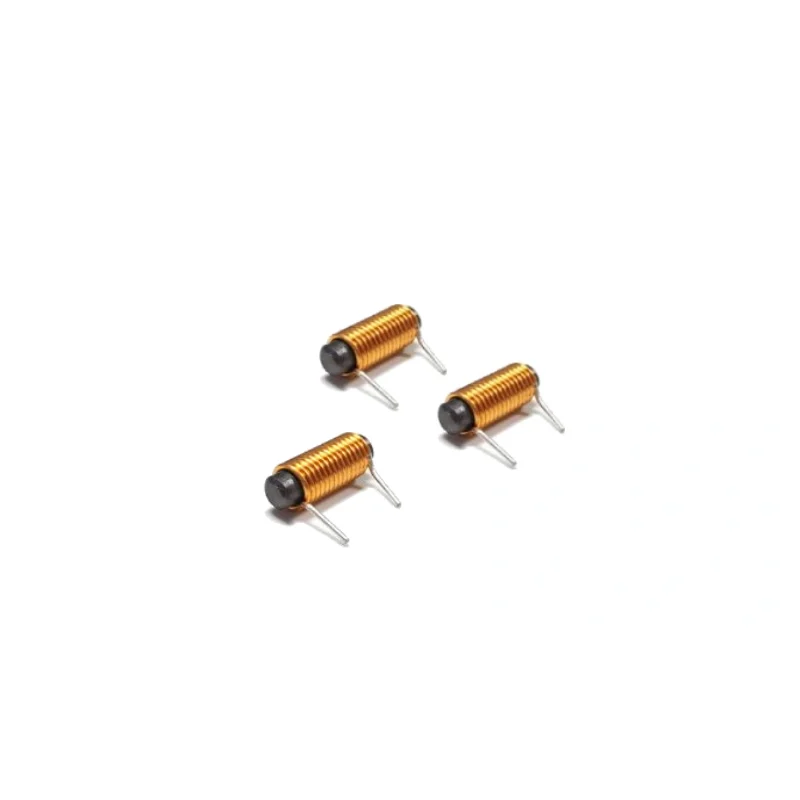

Customizable Horizontal Magnetic Rod Coil Inductor
This magnetic rod inductor features a copper wire coil structure, making it an ideal choice for R-type magnetic rod filter inductors. The high-permeability magnetic core effectively suppresses high-frequency noise, achieving excellent filtering performance in the 50Hz-200kHz frequency range, reducing ripple and interference signals in the circuit, and enhancing the stability of the power supply or signal transmission.
Its compact size allows easy integration into small electronic devices, suitable for applications such as power adapters, automotive electronic systems, and wireless communication modules. Copper wire material has low DC resistance, which can decrease inductance loss and improve circuit energy efficiency. By combining precision winding technology and moisture-proof insulation treatment, it ensures stable operation in complex electromagnetic environments and under various temperature and humidity conditions, providing reliable filtering and energy storage functions for electronic circuits. For inquiries, please contact us at info@smdindutcor.com. Zhenhua provides stock, pricing, and specifications information for magnetic rod inductors.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- RoHS, ISO9001, CE
- Lead-free and environmentally friendly.
- The special lead structure prevents open circuit faults.
- Low distributed capacitance and high self-resonant frequency.
- Compact size, can be installed vertically or horizontally, saving space.
Applications
- Power filters, EMI suppression, DC-DC converters, RF circuits.
- Versatile use in power electronics, communication devices, and signal conditioning.
Product Description
| Brand name: | Zhenhua |
| Dimensions: | 0.8mm (D) × 4mm (W) × 15mm (L) or Custom |
| Wire Material: | Copper (Enameled/Insulated) |
| Core Material: | Ferrite / Magnetic Bar |
| Place of origin: | Shenzhen.China |
| Inductance (L): | Customizable (e.g., 10µH–10mH typical) |
| Current Rating: | Depends on wire gauge (e.g., 1A–5A typical) |
| DC Resistance (DCR): | Low (varies with wire thickness) |
| Frequency Range: | Wide (e.g., 1kHz–10MHz) |
| Temperature Range: | -40°C to +125°C (typical) |
| Mounting Type: | Through-hole (PTH) or SMD options |
