High Current Flat Wire Surface Mount Inductor | 2014 (Custom)

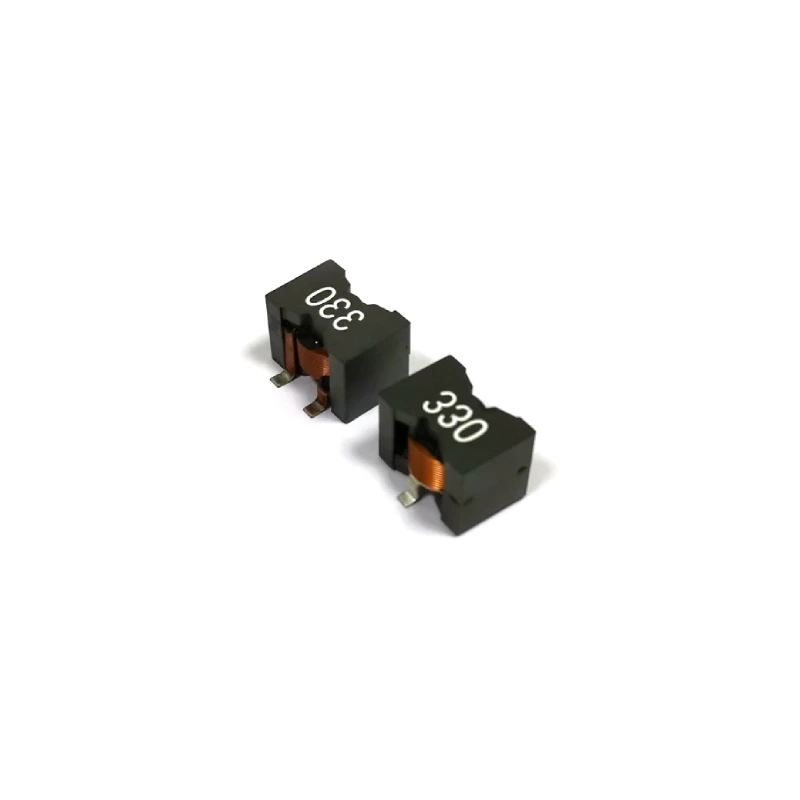

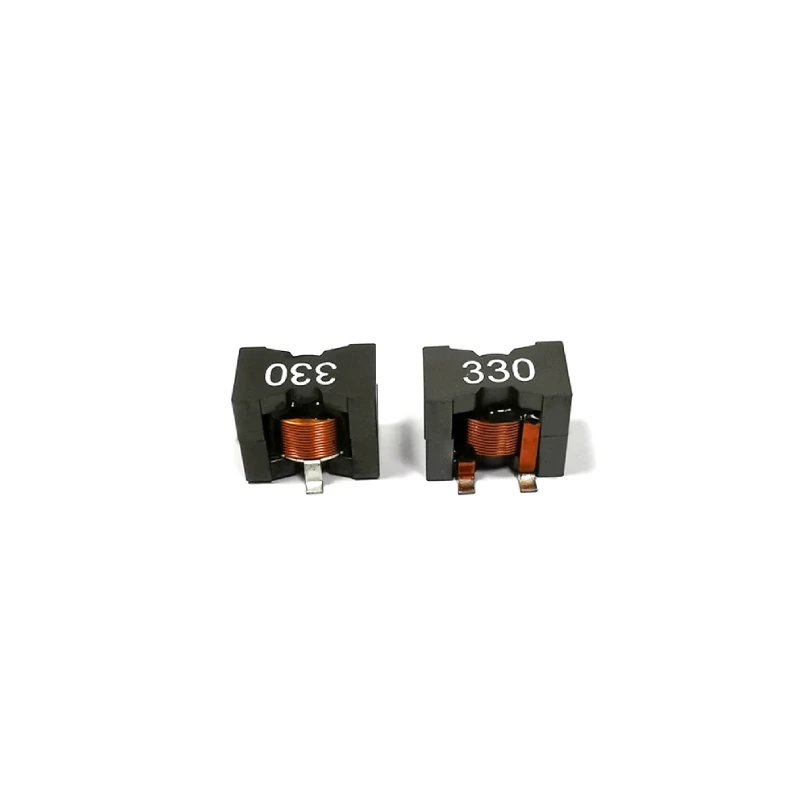

This high-current Surface Mount Device (SMD) power inductor uses a manganese-zinc ferrite core and flat wire windings, resulting in excellent saturation current and temperature-rise current characteristics. Additionally, this high-current SMD inductor features a three-pad terminal design, providing better mounting stability and vibration resistance on the circuit board. All raw materials meet RoHS and REACH regulations, and the product has a Moisture Sensitivity Level (MSL) rating of 1. Its maximum operating temperature is +125°c. Based on these features, this high-current inductor is ideal for harsh environments or various high-current power supply applications.
We can provide custom-designed high-current flat wire inductors. For any inquiries, please get in touch with us at info@smdinductor.com. Zhenhua Company provides inventory information, pricing, and technical specifications for flat wire inductors and offers wholesale pricing.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Low winding loss
- High saturation current
- Extremely low DC resistance
- Good temperature stability
- Low magnetic radiation emission
Applications
- Switching regulators
- High-current power supplies
- Switch-mode power supplies (SMPS)
- High-efficiency DC-DC converter inductors
Shape and Dimensions
| Part Number | Impedance (uH)+20% | Irms(A) | Isat(A) | DCR Max (mΩ) | Dimensions (mm) | ||||||||
| A | B | C | D | D2 | E | E2 | E3 | F | |||||
| 2014-R70 | 0.7 | 32 | 75 | 0.95 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-1R4 | 1.4 | 31.5 | 60 | 1.2 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-2R2 | 2.2 | 28 | 52 | 1.65 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-3R1 | 3.1 | 26 | 45 | 2.3 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-3R3 | 3.3 | 26 | 40 | 2.3 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-4R2 | 4.2 | 24 | 38 | 3.35 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-4R7 | 4.7 | 24 | 32 | 3.35 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-5R5 | 5.5 | 22 | 33 | 4.4 | 21.8Max | 22.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-6R8 | 6.8 | 21 | 30 | 6.2 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-7R0 | 7.0 | 21 | 30 | 6.2 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-8R6 | 8.6 | 17 | 25 | 7.95 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-100 | 10 | 16 | 23 | 8.75 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-150 | 15 | 14 | 21 | 9.6 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-220 | 22 | 12.5 | 15 | 11.75 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-330 | 33 | 12 | 11 | 12.5 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
| 2014-470 | 47 | 11 | 8.5 | 13.5 | 21.8Max | 21.5Max | 14.5Max | 2.5±0.2 | 2.5Ref | 3.0±1.0 | 2.0Ref | 3.5-7.0 | 9.0±0.5 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C, or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
Our Services:
- Free Samples Provided.
- 100% Testing Before Shipment.
- New Design Solutions Provided to Clients.
Customisation Services:
- Turns Ratio
- Inductance Value.
- Packaging Method.
- Product Application.
- Safety Requirements.
- Mounting Dimensions.
- Input Voltage, Output Voltage, and Output Current.
Product prices primarily depend on product parameters, manufacturing process complexity, raw materials, and order quantity.
Production Technology
1. R&D and Design
Our R&D engineers can assist customers in determining parameter requirements and designing product structures and process flows based on these requirements.
2. Technical Support
Our R&D engineers can assist customers in determining parameter requirements and designing product structures and process flows based on these requirements.
3. Manufacturer Guarantee
Our factory has obtained ISO9001:2015 quality management system certification and IATF16949:2016 automotive industry quality management system certification, possessing mature process flows and core technologies.
4. Mature System
We have established five standardised management systems, covering every aspect from product requirements analysis to product quality delivery. We always prioritise customer needs, ensuring an optimal user experience at every stage.
