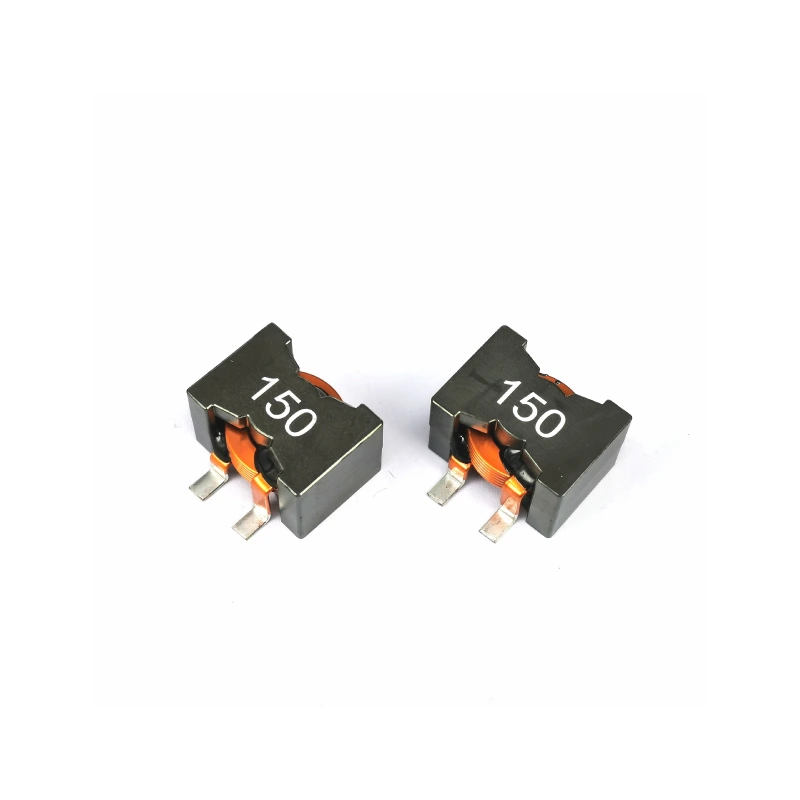

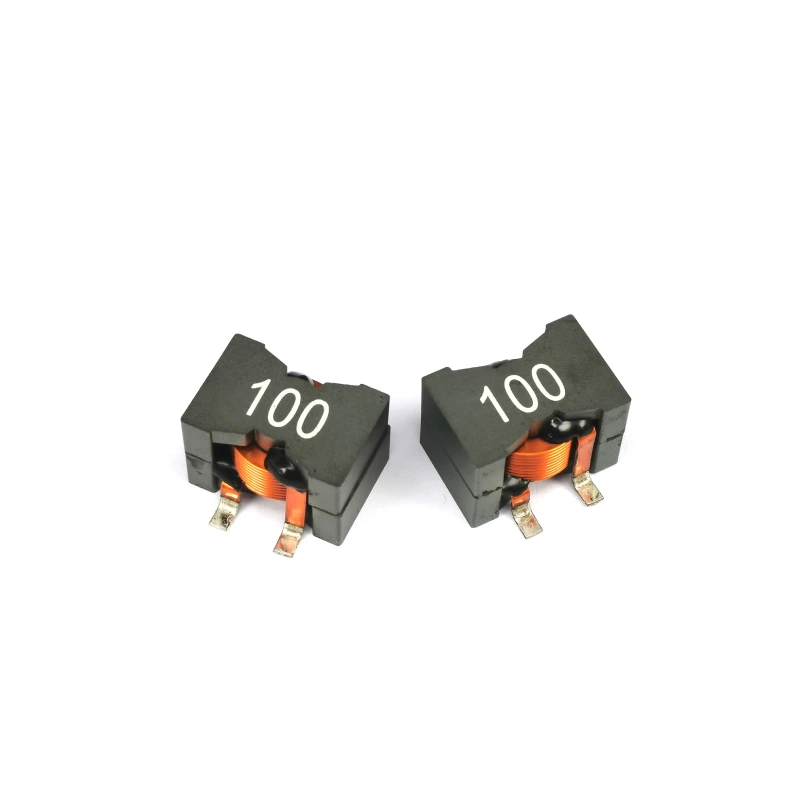

High Current Flat Wire SMD Inductor | 2814 (Custom)
This flat-wire, high-current inductor features a three-pad design engineered to deliver exceptional stability and board adhesion; its flat-wire winding structure ensures extremely low DC resistance. This product series offers a wide range of size specifications and inductance value options, making it suitable for use in POL, VRM, VRD, and various other high-power applications. In addition to possessing extremely low DC resistance, its inductance value exhibits an exceptionally slow rate of decline—even when current levels exceed the saturation current threshold. All raw materials meet RoHS and REACH regulations, and the product has a Moisture Sensitivity Level (MSL) rating of 1. Its maximum operating temperature is +125°c. Based on these features, this high-current inductor is ideal for harsh environments or various high-current power supply applications.
We can provide custom-designed high-current flat wire inductors. For any inquiries, please get in touch with us at info@smdinductor.com. Zhenhua Company provides inventory information, pricing, and technical specifications for flat wire inductors and offers wholesale pricing.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- No Fake Leads
- High Thermal Stability
- High Saturation Current
- Excellent Temperature Stability
- Ultra-Low DC Resistance (DCR)
- 40%–60% Increase in Effective Conductor Surface Area
Applications
- Compact Industrial Controllers and Power Supplies.
- 5G Base Station Power Supplies and Telecom Equipment.
- Automotive-Grade DC-DC Regulators (Efficiency-Optimized).
Shape and Dimensions
| Part Number | Impedance (uH)+20% | Irms(A) | Isat(A) | SRF(MHZ) | DCR Max(mΩ) |
| 2814-1R5 | 1.5 | 30 | >100 | 50 | 1.8 |
| 2814-2R2 | 2.2 | 30 | >100 | 40 | 1.8 |
| 2814-3R3 | 3.3 | 30 | 66.9 | 30 | 1.8 |
| 2814-4R7 | 4.7 | 30 | 48.0 | 25 | 1.8 |
| 2814-6R8 | 6.8 | 30 | 35.5 | 20 | 1.8 |
| 2814-100 | 10 | 30 | 21.5 | 15 | 1.8 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C, or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
