Shielded Chip Power Inductor Wholesale | SMRH3D28

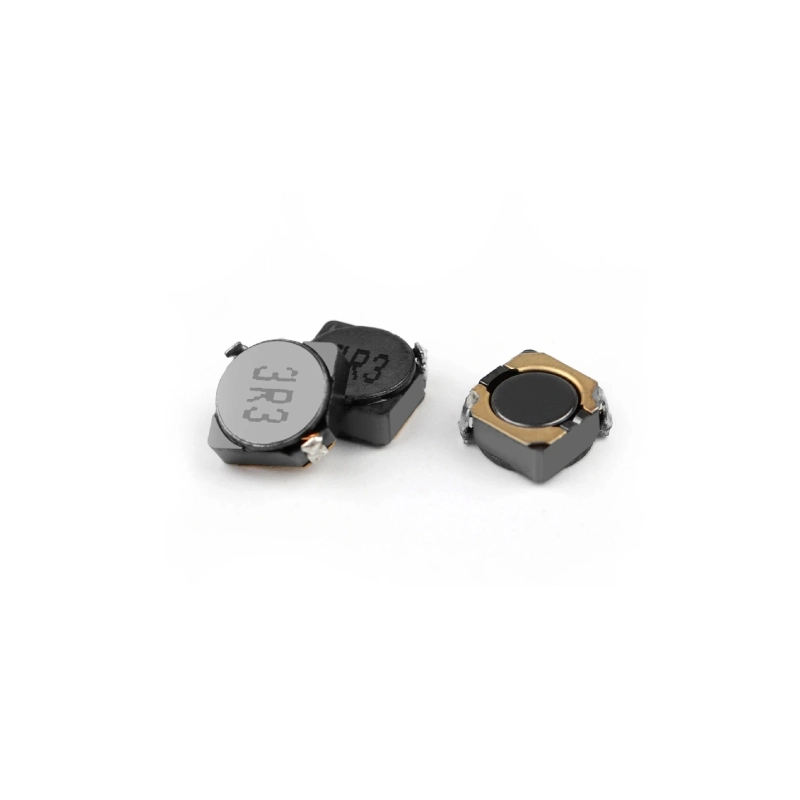

The SMRH2 series SMD shielded inductors are well designed, with consistent DC superposition characteristics, excellent vibration resistance, high cost performance, low core loss, stable quality, a wide inductance range, and low DC resistance. This miniature wound SMD power inductor is manufactured using fully automatic winding, welding, testing, and packaging equipment. Each shipment undergoes 100% inspection, including tests for characteristic inductance value, DC resistance, saturation current Isat, and interlayer isolation.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- ROHS and REACH compliant.
- High current rating, low DC resistance.
- Magnetic shielded surface mount inductor.
- Various package size and wide inductance range.
Applications
- Power supply.
- AP Routers, STBs, and LCD TVs.
- Monitors, Game consoles, and LED lighting.
- Notebook computers, DC-DC converters, etc.
Shape and Dimensions
| Part Number | Inductance (µH) | DCR Max (mΩ) | Rated Current Max (mA) | Mounting | Dimensions (mm) | |||||
| A1 (Max) | A2 (Max) | B (Max) | H | I | J | |||||
| SMRH3D28-1R0 | 1.0 | 0.090 | 2300 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-1R2 | 1.2 | 0.110 | 2200 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-1R8 | 1.8 | 0.130 | 2200 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-2R2 | 2.2 | 0.180 | 2100 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-2R5 | 2.5 | 0.070 | 2000 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-2R7 | 2.7 | 0.073 | 1950 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-3R3 | 3.3 | 0.087 | 1800 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-3R9 | 3.9 | 0.082 | 1600 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-4R7 | 4.7 | 0.100 | 1500 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-5R6 | 5.6 | 0.110 | 1350 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-6R8 | 6.8 | 0.150 | 1200 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-8R2 | 8.2 | 0.160 | 1100 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-100 | 10 | 0.170 | 1050 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-120 | 12 | 0.175 | 900 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-150 | 15 | 0.230 | 850 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-180 | 18 | 0.250 | 750 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-220 | 22 | 0.335 | 680 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-270 | 27 | 0.420 | 620 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-330 | 33 | 0.600 | 560 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-390 | 39 | 0.750 | 510 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-470 | 47 | 0.900 | 481 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-560 | 56 | 1.20 | 430 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-680 | 68 | 1.40 | 400 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-820 | 82 | 1.80 | 360 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-101 | 100 | 2.00 | 330 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-121 | 120 | 2.20 | 300 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-151 | 150 | 3.20 | 270 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-181 | 180 | 3.50 | 250 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-221 | 220 | 4.00 | 220 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
| SMRH3D28-271 | 270 | 5.60 | 200 | SM | 4.0 | 4.0 | 3.1 | 4.5 | 1.5 | 1.2 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20 days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
SMRH2 Series SMD Shielded Power Inductors
Detailed information including inductance, tolerance, rated current and DCR.
