Multilayer Chip Ceramics Inductors CH Series

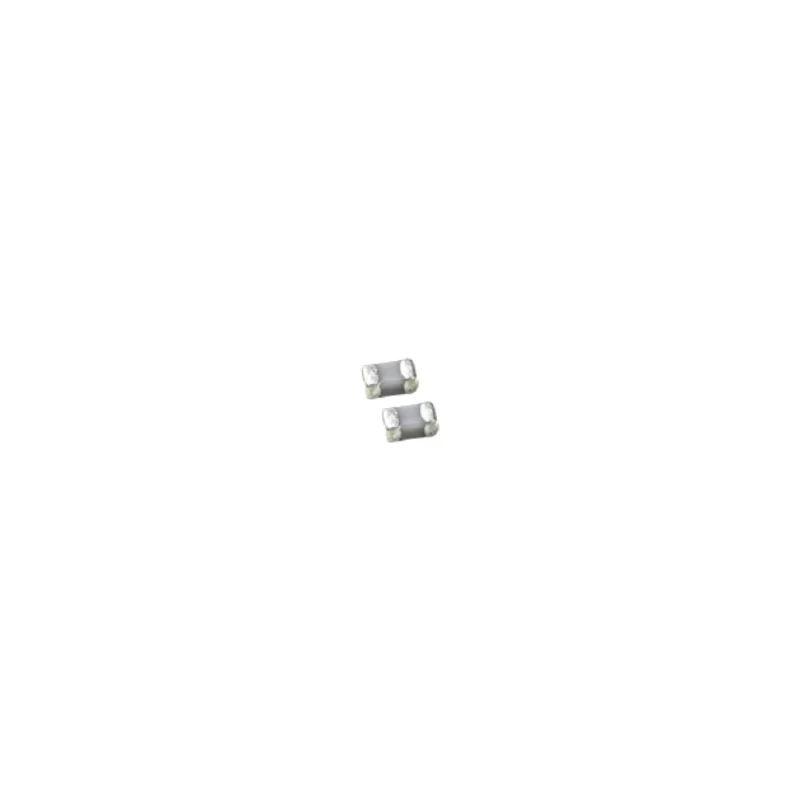

Multilayer Ceramic High Q Chip Inductors | CH0402

Ceramic chip inductors (multilayer structure) are suitable for high-frequency applications in various electronic systems, such as signal shaping and RF filtering. Zhenhua offers a wide range of high-frequency ceramic inductors in various sizes and specifications, featuring extremely low core loss, high Q value, and low inductance. Multilayer ceramic chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and compared to wire-wound inductors, multilayer chip inductors offer lower cost and smaller size. Ceramic high-frequency chip inductors feature high frequency, high self-resonant frequency (SRF), excellent Q value, and superior temperature stability. They provide stable inductance values in high-frequency circuits. The high-stability design meets the requirements of critical applications.
For any inquiries, please contact us at info@smdindutcor.com.
Zhenhua provides stock, pricing, and specifications information for multilayer ceramic chip inductors.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Category Multilayer Chip Inductors

Description

Features

High self-resonant frequency.
OPERATING TEMP: -55℃ ~ +125℃
Monolithic Structure for high reliability, Small size inductor.
Excellent solderability and high heat resistance, High Q factor.

Applications

Mobile communication equipment terminal.
High-frequency circuit, intermediate increase circuit.
RF circuit in telecommunication and other equipment.

Shape and Dimensions

Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	Dimensions (mm)
Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	L	W	T	a	A	B	C
CH0402H1N0	1.0	10000	0.4	350	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H1N2	1.2	10000	0.4	250	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H1N5	1.5	10000	0.4	220	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H1N8	1.8	10000	0.5	220	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H2N2	2.2	9000	0.5	200	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H2N7	2.7	7000	0.6	200	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H3N0	3.0	7000	0.9	200	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H3N3	3.3	7000	0.9	180	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H3N9	3.9	6000	1.0	180	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H4N7	4.7	5000	1.2	160	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H5N6	5.6	5000	1.5	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H6N8	6.8	4500	1.8	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H8N2	8.2	4000	2.0	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H10N	10	3600	2.0	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H15N	15	3000	3.0	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H18N	18	2300	3.2	140	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H20N	20	2200	4.5	130	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H39N	39	2100	5.2	110	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H47N	47	1900	5.8	100	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402H68N	68	1800	6.5	90	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402HR10	100	1600	7.8	70	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2
CH0402HR11	110	1550	8.0	65	0.4±0.02	0.2±0.02	0.2±0.02	0.08±0.025	0.25	0.2	0.2

Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
