SMT Wire Wound Chip Inductor – NL322522

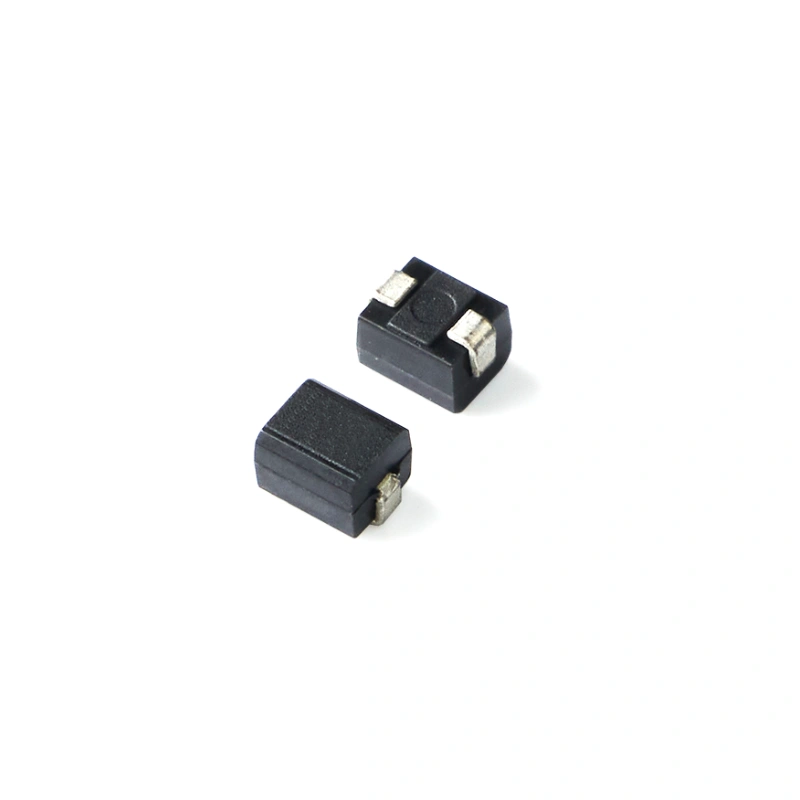

NL322522 wire-wound ferrite SMD inductor features a wire-wound construction, with the wire covered by a plastic molding case. This molding case of ferrite wire-wound inductor has highly accurate dimensions, reliable performance, and excellent heat durability that withstands the lead-free reflow soldering process.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Request A Quote
Categories ,

Description

Features

  • The terminal plating adopts lead-free material.
  • The product adopts metal terminals, and the connection reliability is excellent.
  • The product has good heat resistance and can withstand lead-free compatible reflow soldering conditions.
  • It has strong heat resistance, moisture resistance, mechanical shock resistance and pressure resistance, and is dimensionally accurate, and suitable for automatic surface mounting.

Applications

  • Video and audio.
  • Communications, equipment and instruments.
  • Hard disk drives and other electronic devices.

Shape and Dimensions

NL Series Wire Wound Ferrite Inductor

Part Number Inductance (uH) Qmin SRFmin (MHz) DCR Max (Ω) Rated Current Max (mA) SRFmin (MHz)
A (Max) B (Max) C (Max) D (Max) G I H
NL322522-47N 0.047 27 1200 0.30 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-68N 0.068 27 1000 0.36 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-82N 0.082 27 900 0.40 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R10 0.10 30 700 0.44 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R12 0.12 30 500 0.22 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R15 0.15 30 450 0.25 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R18 0.18 30 400 0.28 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R22 0.22 30 350 0.32 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R27 0.27 30 320 0.36 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R33 0.33 30 300 0.40 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R39 0.39 30 250 0.45 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R47 0.47 30 220 0.50 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R56 0.56 30 180 0.55 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R68 0.68 30 160 0.60 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-R82 0.82 30 140 0.65 450 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-1R0 1.0 30 120 0.70 400 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-1R2 1.2 30 100 0.75 390 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-1R5 1.5 30 85 0.85 370 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-1R8 1.8 30 80 0.90 350 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-2R2 2.2 30 65 1.0 320 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-2R7 2.7 30 65 1.1 290 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-3R3 3.3 30 50 1.2 260 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-3R9 3.9 30 45 1.3 250 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-4R7 4.7 30 45 1.5 220 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-5R6 5.6 30 40 1.6 200 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-6R8 6.8 30 40 1.8 180 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-8R2 8.2 30 40 2.1 170 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-100 10 30 35 2.8 150 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-120 12 30 30 3.3 140 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-150 15 30 20 3.7 130 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-180 18 30 20 3.7 120 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-220 22 30 20 3.7 110 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-330 33 30 20 5.6 70 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-390 39 30 17 6.4 65 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-470 47 30 16 7.0 60 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-560 56 30 13 8.0 55 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-680 68 30 12 9.0 50 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-820 82 30 10 10.0 45 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-101 100 30 9 10.0 40 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-151 150 25 8 15.0 65 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-181 180 25 7 17.0 60 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-221 220 25 7 21.0 50 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50
NL322522-331 330 25 5 34.0 40 3.2±0.50 2.5±0.50 2.2±0.50 1.2±0.30 4.40 1.50 4.50

Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.

ZNL322522

NL Series Wire Wound Chip Inductors

Detailed informations including inductance, tolerance, rated current and DCR.
