Wire Wound SMD Inductors – NL453232

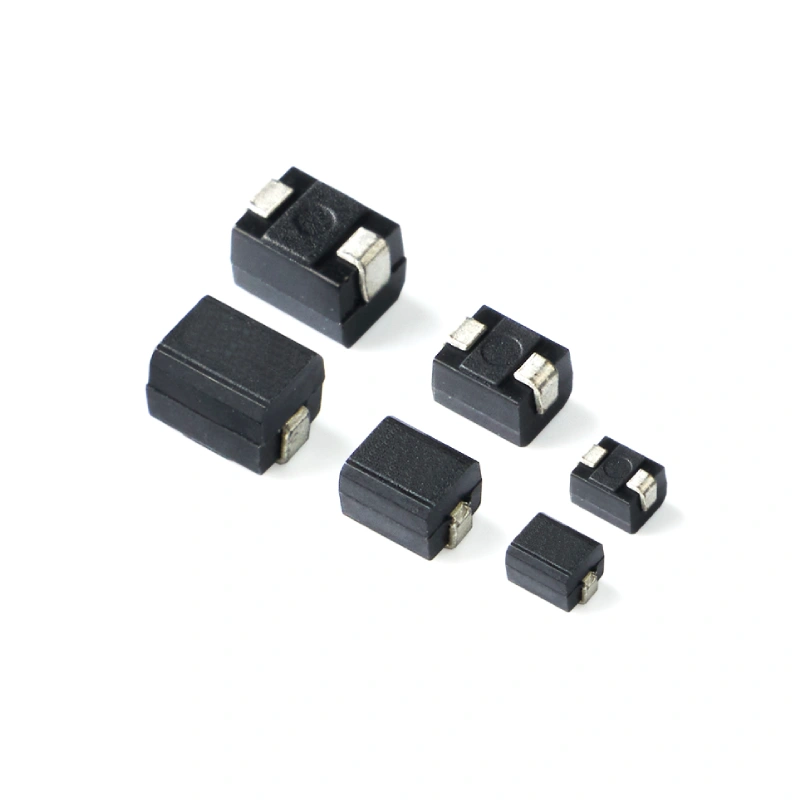

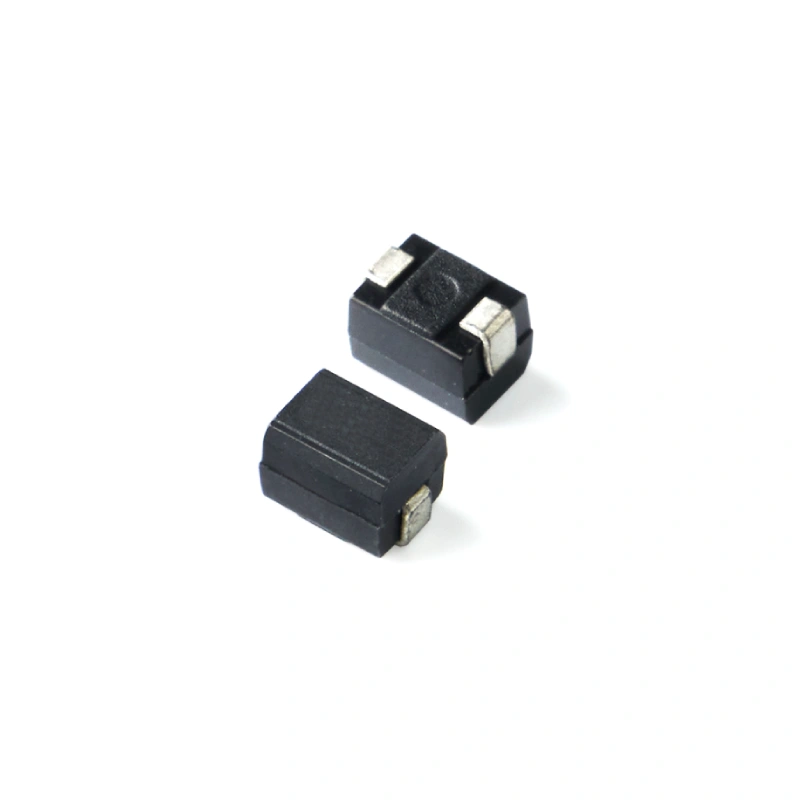

NL453232 Wirewound SMD inductors are suitable for electronic equipment information processing systems. Wire-wound ferrite SMD inductor features a wire-wound construction, with the wire covered by a plastic molding case. This molding case of ferrite wire-wound inductor has highly accurate dimensions, reliable performance, and excellent heat durability that withstands the lead-free reflow soldering process.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- The terminal plating adopts lead-free material.
- The product adopts metal terminals, and the connection reliability is excellent.
- The product has good heat resistance and can withstand lead-free compatible reflow soldering conditions.
- It has strong heat resistance, moisture resistance, mechanical shock resistance and pressure resistance, and is dimensionally accurate, and suitable for automatic surface mounting.
Applications
- Video and audio.
- Communications, equipment and instruments.
- Hard disk drives and other electronic devices.
Shape and Dimensions
| Part Number | Inductance (uH) | Qmin | SRFmin (MHz) | DCR Max (Ω) | Rated Current Max (mA) | SRFmin (MHz) | ||||||
| A (Max) | B (Max) | C (Max) | D (Max) | G | I | H | ||||||
| NL453232-1R0 | 1.0 | 50 | 100 | 0.50 | 450 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-1R2 | 1.2 | 50 | 80 | 0.55 | 430 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-1R5 | 1.5 | 50 | 70 | 0.60 | 410 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-1R8 | 1.8 | 50 | 60 | 0.65 | 390 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-2R2 | 2.2 | 50 | 55 | 0.70 | 380 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-2R7 | 2.7 | 50 | 50 | 0.75 | 370 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-3R3 | 3.3 | 50 | 45 | 0.80 | 355 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-3R9 | 3.9 | 50 | 40 | 0.90 | 330 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-4R7 | 4.7 | 50 | 35 | 1.0 | 315 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-5R6 | 5.6 | 50 | 33 | 1.1 | 300 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-6R8 | 6.8 | 50 | 27 | 1.2 | 285 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-8R2 | 8.2 | 50 | 25 | 1.4 | 270 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-100 | 10 | 50 | 20 | 1.6 | 250 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-120 | 12 | 50 | 18 | 2.0 | 225 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-150 | 15 | 50 | 17 | 2.5 | 200 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-180 | 18 | 50 | 15 | 2.8 | 190 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-220 | 22 | 50 | 13 | 3.2 | 180 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-330 | 33 | 50 | 11 | 4.0 | 160 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-390 | 39 | 50 | 10 | 4.5 | 150 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-470 | 47 | 50 | 10 | 5.0 | 140 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-560 | 56 | 50 | 9 | 5.5 | 135 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-680 | 68 | 50 | 9 | 6 | 130 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-820 | 82 | 50 | 8 | 7 | 120 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-101 | 100 | 40 | 8 | 8 | 110 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-121 | 120 | 40 | 6 | 8 | 110 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-151 | 150 | 40 | 5 | 9 | 105 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-181 | 180 | 40 | 5 | 9.5 | 102 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-221 | 220 | 40 | 4 | 10 | 100 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-271 | 270 | 40 | 4 | 12 | 92 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-331 | 330 | 40 | 3.5 | 14 | 85 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-391 | 390 | 40 | 3.0 | 16 | 80 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-471 | 470 | 40 | 3.0 | 26 | 62 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-561 | 560 | 30 | 3.0 | 30 | 50 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-681 | 680 | 30 | 3.0 | 30 | 50 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-821 | 820 | 30 | 2.5 | 35 | 30 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
| NL453232-102 | 1000 | 20 | 2.5 | 40 | 30 | 4.5±0.50 | 3.2±0.50 | 3.2±0.50 | 1.4±0.30 | 5.90 | 1.50 | 4.20 |
