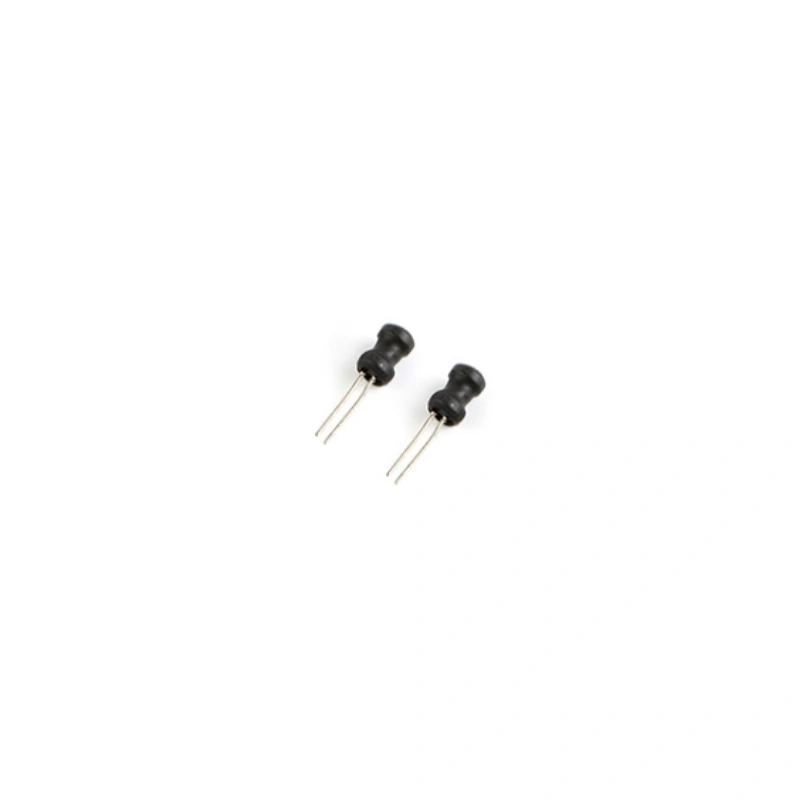

Shielded Radial Leaded Inductors _ RI0406
Zhenhua offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Ideal as a choke coil for noise filtering.
- Small-size radial lead type.
- With a special base for uniform lead wire.
- Available with or without heart shrunk.
- High Q with high rate current.
Applications
- Buzzers and Alarm systems.
- TVs and Audio equipment and Switching power supplies.
- Notebook computers, DC-DC converters, and air-conditions, etc.
Shape and Dimensions
| Part Number | Inductance (uH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||||
| ФA(MAX) | B(MAX) | C(MAX) | D | E | ||||
| RI0406-1R0 | 1.0 | 0.022 | 3200 | 6 | 9.5 | According to customer demand | 0.50±0.1 | 1.75±0.5 |
| RI0406-1R2 | 1.2 | 0.026 | 3000 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-1R5 | 1.5 | 0.032 | 2650 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-1R8 | 1.8 | 0.035 | 2400 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-2R2 | 2.2 | 0.040 | 2200 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-2R7 | 2.7 | 0.045 | 2000 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-3R3 | 3.3 | 0.050 | 1850 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-3R9 | 3.9 | 0.055 | 1750 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-4R7 | 4.7 | 0.065 | 1550 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-5R6 | 5.6 | 0.070 | 1450 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-6R8 | 6.8 | 0.080 | 1350 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-8R2 | 8.2 | 0.095 | 1150 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-100 | 10 | 0.100 | 1050 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-120 | 12 | 0.120 | 1000 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-150 | 15 | 0.140 | 900 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-180 | 18 | 0.160 | 800 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-220 | 22 | 0.220 | 700 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-270 | 27 | 0.240 | 650 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-330 | 33 | 0.280 | 600 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-390 | 39 | 0.350 | 550 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-470 | 47 | 0.430 | 500 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-560 | 56 | 0.510 | 450 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-680 | 68 | 0.650 | 420 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-820 | 82 | 0.800 | 380 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-101 | 100 | 1.00 | 340 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-121 | 120 | 1.25 | 310 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-151 | 150 | 1.45 | 280 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-181 | 180 | 1.90 | 250 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-221 | 220 | 2.45 | 230 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-271 | 270 | 2.75 | 210 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-331 | 330 | 3.60 | 190 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-391 | 390 | 4.00 | 170 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
| RI0406-471 | 470 | 5.35 | 150 | 6 | 9.5 | 0.50±0.1 | 1.75±0.5 | |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
RI Series Radial Lead Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
