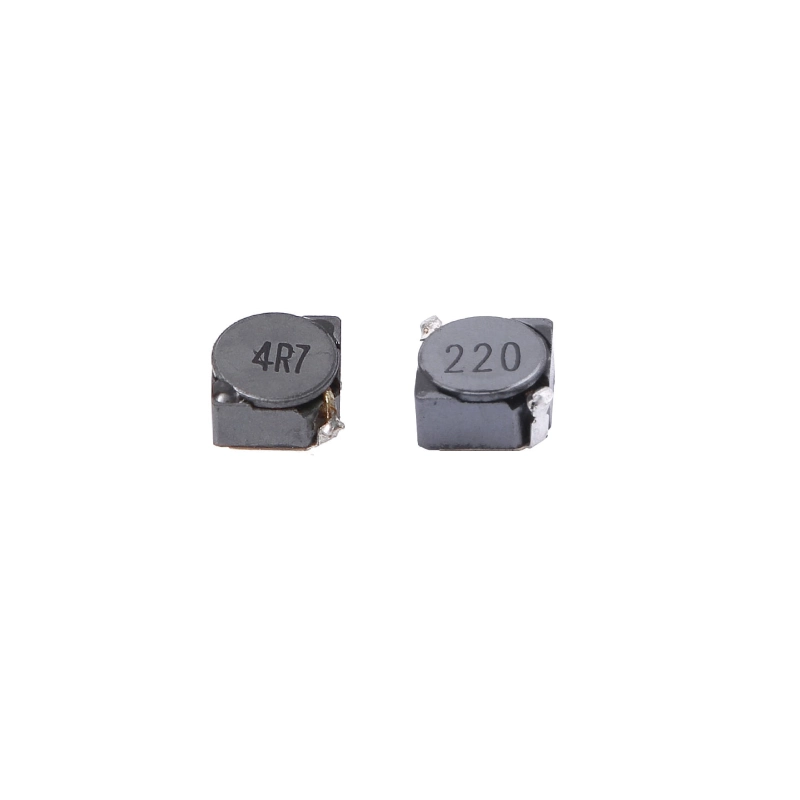

SMD Shielded Power Inductors | SMRH2D11
The SMRH2 series SMD shielded inductors are well designed, with consistent DC superposition characteristics, excellent vibration resistance, high cost performance, low core loss, stable quality, a wide inductance range, and low DC resistance. This miniature wound SMD power inductor is manufactured using fully automatic winding, welding, testing, and packaging equipment. Each shipment undergoes 100% inspection, including tests for characteristic inductance value, DC resistance, saturation current Isat, and interlayer isolation.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- ROHS and REACH compliant.
- High current rating, low DC resistance.
- Magnetic shielded surface mount inductor.
- Various package size and wide inductance range.
Applications
- Power supply.
- AP Routers, STBs, and LCD TVs.
- Monitors, Game consoles, and LED lighting.
- Notebook computers, DC-DC converters, etc.
Shape and Dimensions
| Part Number | Inductance (µH) | DCR Max (mΩ) | Rated Current Max (mA) | Mounting | Dimensions (mm) | |||||
| A1 (Max) | A2 (Max) | B (Max) | H | I | J | |||||
| SMRH2D11-1R5 | 1.5 | 0.08 | 880 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-2R2 | 2.2 | 0.12 | 700 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-3R3 | 3.3 | 0.155 | 580 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-4R7 | 4.7 | 0.21 | 500 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-5R6 | 5.6 | 0.29 | 440 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-6R8 | 6.8 | 0.33 | 390 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-8R2 | 8.2 | 0.37 | 350 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-100 | 10 | 0.40 | 320 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-120 | 12 | 0.55 | 300 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-150 | 15 | 0.78 | 260 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
| SMRH2D11-220 | 22 | 1.05 | 210 | SM | 3.3 | 3.3 | 1.4 | 3.5 | 1.35 | 0.8 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20 days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
SMRH2 Series SMD Shielded Power Inductors
Detailed information including inductance, tolerance, rated current and DCR.
