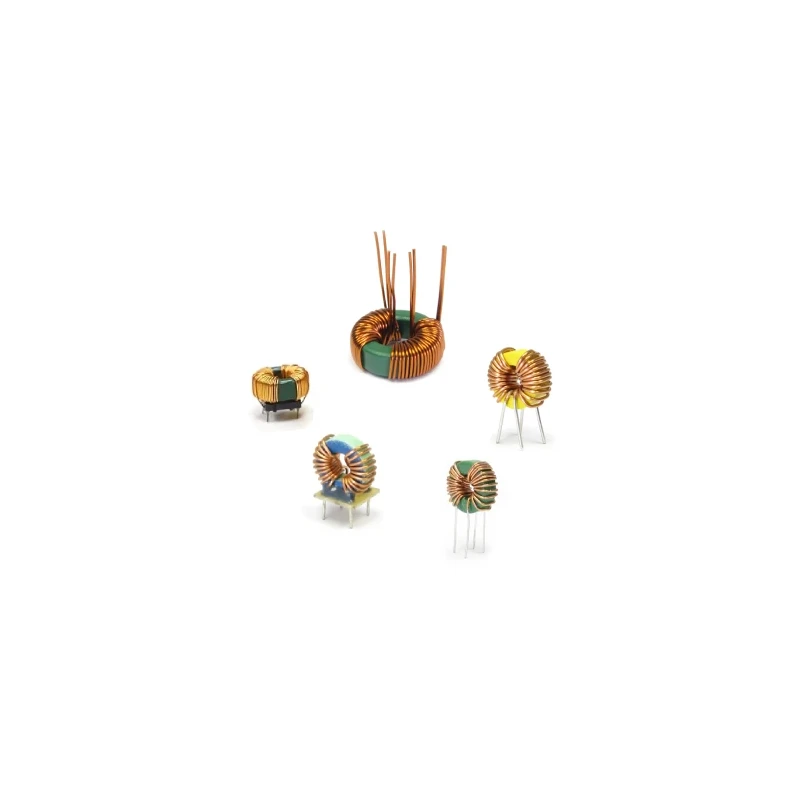

A toroidal inductor, widely used in electronic circuits, is an insulated coil wound around a toroidal shape and made of different materials such as iron powder, ferrite or other materials. Toroidal inductors are mainly used in situations where high inductance is required. They have a higher inductance per turn and can carry more current than solenoids with a core of similar material and size.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Categories Common Mode Inductors, Through Hole Common Mode

Description

Features

High saturation current.
It offers much lower losses and high energy storage capability.
Toroidal distributed gap makes less leakage of magnetic flux.
Useful in a wide variety of power conversion and line filter applications.

Applications

Automotive
Output chokes.
Switching mode power supplies.
SCR and Triac Controls.
EMI filters, loading coils, and Q filters.

Shape and Dimensions

Part Number	Impedance (uH)	DCR Max (Ω)	lrms Max (mA)	lsat Max (mA)	Dimensions (mm)
Part Number	Impedance (uH)	DCR Max (Ω)	lrms Max (mA)	lsat Max (mA)	ФA (Max)	ФB (MAX)
THHB9x5x3-301	300	0.045	700	3000	13	13
THHB9x5x501	500	0.080	20	100	13	13
THHB10x6x5-500	50	0.030	700	3000	13	13
THHB10x6x5-151	150	0.040	500	2000	13	13
THHB10x6x5-271	270	0.065	250	1000	13	13
THHB10x6x5-391	390	0.080	800	4000	13	13
THH6026-220	22	0.045	900	5000	13	13
THH6026-181	180	0.250	500	2000	13	13
THH26826A-1R5	1.5	0.005	1000	6000	13	13
THH28026-1R2	1.2	0.005	1000	6000	13	13
TH10608-300	30	0.045	2000	10000	13	13
