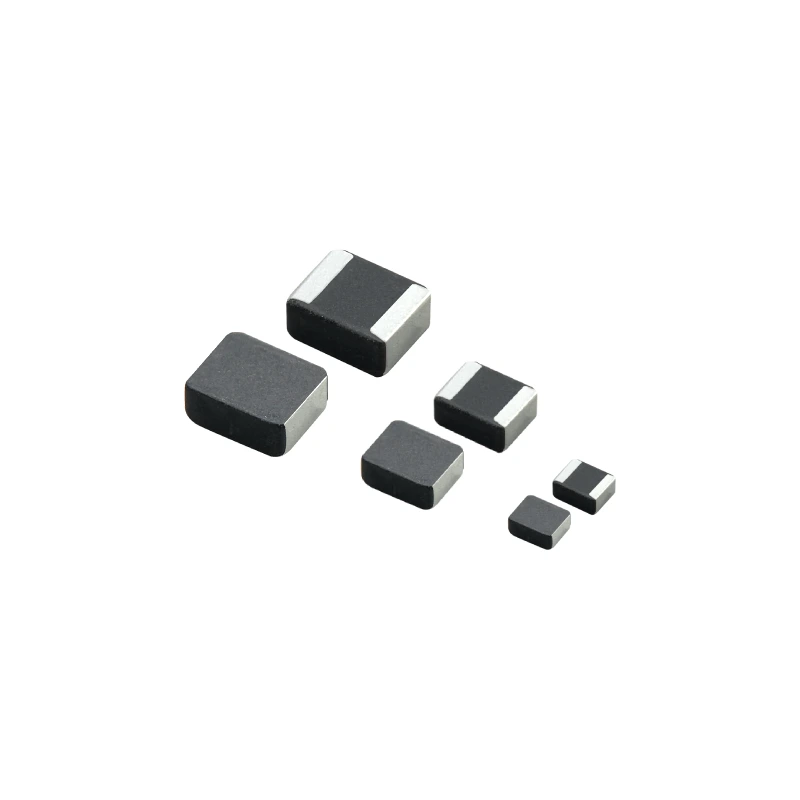

Ultra-Compact Integrated Molded Power Inductor | SHCB160808
The SHCB series features an innovative molded construction, representing the pinnacle of miniaturization technology for high-power inductors and ranking among the most compact products of its kind globally.
Designed for cutting-edge applications that demand both high performance and space efficiency, this series sets a new benchmark in power management technology. It utilizes an advanced molding process to encapsulate a flat metal alloy coil within protective magnetic material, thereby enhancing energy efficiency, reducing electromagnetic interference (EMI), and ensuring exceptional durability across diverse operating environments.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- ROHS and REACH compliant.
- Low DC Resistance
- Robust and Reliable
- Extreme Miniaturization
- High Cost-Effectiveness
- High Current-Carrying Capacity
Applications
- Whether in automotive electronics, consumer electronics, or power modules, our inductors are designed to enhance reliability and efficiency. They are particularly well-suited for Advanced Driver Assistance Systems (ADAS), portable electronic devices, and compact power supply solutions.
Shape and Dimensions
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C, or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs clear them.
Tape and Reel Specification
| Parts Per Reel | Reel Dimensions (mm) | Tape Dimensions (mm) | ||||||||||
| 7″ (178mm) | 13″ (330mm) | A | B | C | D | E | W | P | Po | P1 | H | T |
| 350 | 1500* | 178/330 | 60/100 | 13 | 18.4 | 12.4 | 16 | 12 | 4 | 2 | 3.7 | 0.4 |
SHCB Series Ultral High Current Molded Power Inductor
Detailed information including inductance, tolerance, rated current and DCR.
