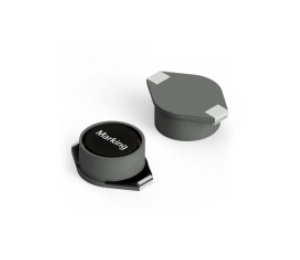

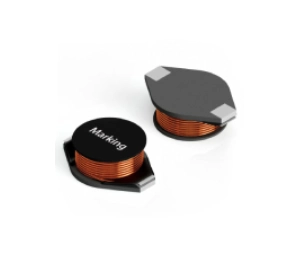

SD Series SMD Shielded & Unshielded Inductors
We offer power inductors in various sizes and shapes, including through-hole and surface-mount options, for switching power supplies, DC-DC converters, and EMI filtering applications. SMD shielded power inductors have high saturation current and wide inductance range, while unshielded power inductors are particularly suitable for high-volume applications with strict cost requirements. We also offer molded power inductors with a metal alloy powder structure, which have the advantages of low core loss, reduced buzzing noise, and low DC resistance at ultra-high currents. If you have any application requirements, please feel free to contact us.
Picture | Part Number | Max Size(mm) | Inductance (µH) | DCR Max (Ω) | Rated Current Max (mA) | Application | Series Spec PDF |
 | 6.6 x 4.45 x 2.92 | 1.0µH ~ 1000µH | 0.050Ω ~ 20.0Ω | 100mA ~ 2900mA | |||
 | 6.6 x 4.45 x 2.92 | 1.0µH ~ 1000µH | 0.040Ω ~ 25.0Ω | 70mA ~ 1400mA | |||
| 12.95 x 9.4 x 5.21 | 1.0µH ~ 1000µH | 0.009Ω ~ 9.0Ω | 300mA ~ 9000mA | |||
| 12.95 x 9.4 x 5.21 | 1.0µH ~ 47µH | 0.021Ω ~ 0.472Ω | 1000mA ~ 5600mA | |||
| 18.54 x 15.24 x 7.11 | 1.0µH ~ 2000µH | 0.009Ω ~ 4.5Ω | 300mA ~ 20000mA | |||
| 18.54 x 15.24 x 7.11 | 10µH ~ 1000µH | 0.040Ω ~ 2.01Ω | 800mA ~ 8000mA |
