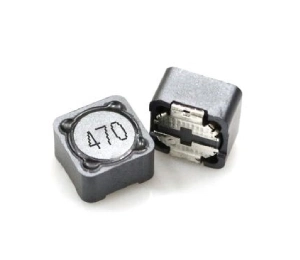

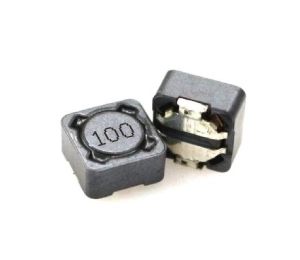

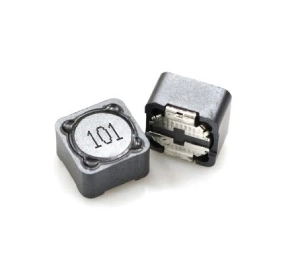

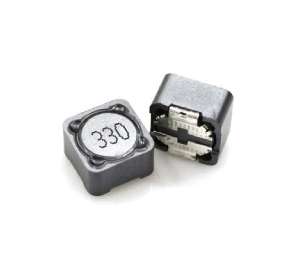

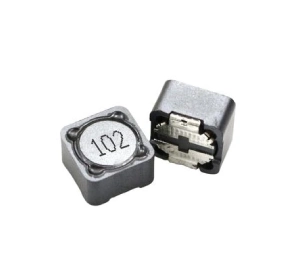

SMRH Series SMD Power Inductors
We offer power inductors in various sizes and shapes, including through-hole and surface-mount options, for switching power supplies, DC-DC converters, and EMI filtering applications. SMD shielded power inductors have high saturation current and wide inductance range, while non-shielded power inductors are particularly suitable for high-volume applications with strict cost requirements. We also offer molded power inductors with a metal alloy powder structure, which have the advantages of low core loss, reduced buzzing noise, and low DC resistance at ultra-high currents. If you have any application requirements, please feel free to contact us.
Picture | Part Number | Size(mm) | Inductance (µH) | DCR Max (Ω) | Rated Current Max (mA) | Applications | Series Spec PDF |
 | 7.3 x 7.3 x 3.8 | 10µH ~ 1000µH | 0.072Ω ~ 9.44Ω | 160mA ~ 1680mA | |||
 | 7.3 x 7.3 x 4.5 | 10µH ~ 1000µH | 0.075Ω ~ 6.00Ω | 180mA ~ 1840mA | |||
 | 12.0 x 12.0 x 5.0 | 1.0µH ~ 820µH | 0.008Ω ~ 2.65Ω | 400mA ~ 12000mA | |||
| 12.0 x 12.0 x 6.2 | 1.3µH ~ 1000µH | 0.013Ω ~ 1.80Ω | 400mA ~ 7000mA | |||
 | 12.0 x 12.0 x 8.0 | 1.2µH ~ 1000µH | 0.007Ω ~ 1.84Ω | 550mA ~ 9800mA | |||
 | 10.0 x 10.6 x 4.0 | 1.5µH ~ 330µH | 0.0081Ω ~ 1.09Ω | 700mA ~ 10000mA | |||
 | 10.0 x 10.6 x 5.0 | 1.5µH ~ 1000µH | 0.0058Ω ~ 2.15Ω | 500mA ~ 10500mA | |||
| 12.0 x 12.0 x 10.5 | 1.0µH ~ 10000µH | 0.0065Ω ~ 15.0Ω | 200mA ~ 20000mA |
