SMRN Series SMD Coupled Inductors
Zhenhua SMD high-performance surface-mount common-mode inductors are available in various sizes and structures. They are designed for power lines, support higher current capacities, and can suppress common-mode noise in AC lines across a wide frequency range. SMD coupled inductors are ideal for monitors, game consoles, LED lighting, AP routers, set-top boxes, LCD TVs, laptops, DC-DC converters, and more. Please feel free to contact us for any application needs.
Picture | Part Number | Max Size(mm) | Inductance (nH) | DCR Max (Ω) | lrms Current (mA) | Application | Series Spec PDF |
 | 7.3 x 7.3 x 4.8 | 3.3µH ~ 100µH | 0.033Ω ~ 0.77Ω | 800mA ~ 3200mA | Monitors, Game consoles and LED lightings, AP Rounters, STBs and LCD TVs. Notebook computer, DC – DC converters, etc | ||

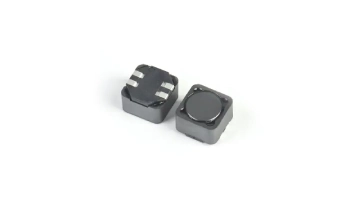

| 10.0 x 10.0 x 5.0 | 10µH ~ 220µH | 0.02Ω ~ 0.85Ω | 800mA ~ 3200mA | Monitors, Game consoles and LED lightings, AP Rounters, STBs and LCD TVs. Notebook computer, DC – DC converters, etc | ||
| 12.0 x 12.0 x 6.5 | 4.7µH ~ 100µH | 0.028Ω ~ 0.32Ω | 1300mA ~ 5000mA | Monitors, Game consoles and LED lightings, AP Rounters, STBs and LCD TVs. Notebook computer, DC – DC converters, etc | ||
| 12.0 x 12.0 x 8.3 | 3.3µH ~ 470µH | 0.021Ω ~ 1.00Ω | 800mA ~ 7000mA | Monitors, Game consoles and LED lightings, AP Rounters, STBs and LCD TVs. Notebook computer, DC – DC converters, etc |
