T Series Toroidal Choke Coil Inductors
A through-hole common-mode inductor is an electronic component designed to filter or suppress common-mode noise in a circuit by providing a high-impedance path for common-mode currents while allowing the desired differential-mode current to pass with minimal impedance. Welcome to purchase through-hole common-mode inductor products from Zhenhua’s factory. Please feel free to contact us for any application needs.
Picture | Part Number | Max Size(mm) | Impenance (µH) | DCR Max (Ω) | lrms Max (mA) | Application | Series Spec PDF |

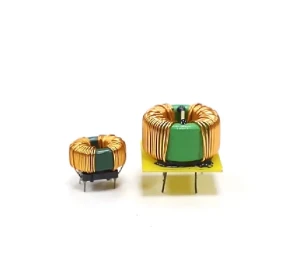

 | 13*13 | 1.2 ~ 500 | 0.005 – 0.250 | 20 – 2000 | Automotive Output chokes. SCR and Triac Controls. Switching mode power supplies. EMI filters, loading coils, and Q filters. | ||

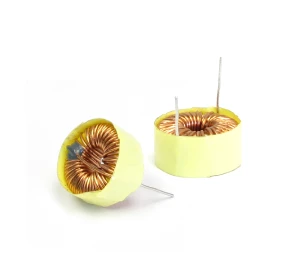

 | 10*6/20*10/21*12/22*10/24*10 | 1.2 ~ 220 | 0.005 – 0.450 | 20 – 2000 | Automotive Output chokes. SCR and Triac Controls. Switching mode power supplies. EMI filters, loading coils, and Q filters. | ||

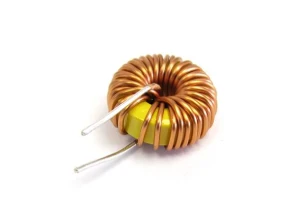

 | 12*7/12*6/17*8/18*12/18*12/19*12/30*13/32*16 | 0.56 ~ 500 | 0.010 – 0.500 | 200 – 2000 | Automotive Output chokes. SCR and Triac Controls. Switching mode power supplies. EMI filters, loading coils, and Q filters. | ||

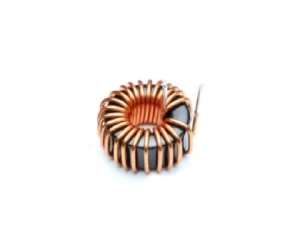

 | 22*12/24*14/20*10 | 1.2 ~ 200 | 0.010 – 0.080 | 700 – 900 | Automotive Output chokes. SCR and Triac Controls. Switching mode power supplies. EMI filters, loading coils, and Q filters. | ||

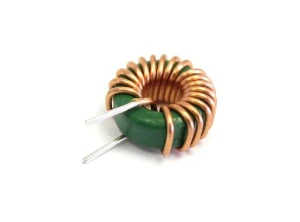

 | 11*6/12*7/16*8/18*8/20*10/22*10/26*12/24*13/31*16/34*13/50*20 | 0.82 ~ 10000 | 0.005 ~ 0.200 | 150 – 12000 | Automotive Output chokes. SCR and Triac Controls. Switching mode power supplies. EMI filters, loading coils, and Q filters. |
