High Current Flat Wire SMD Inductors
Flat wire power inductors utilize copper wire with a rectangular cross-section, designed to minimize copper loss; compared to traditional round-wire windings, this design increases the surface area by 40% to 60%. This structure significantly reduces DC resistance and enhances heat dissipation, enabling the product to achieve a higher continuous current-carrying capacity within a compact form factor.
We welcome customer inquiries regarding custom designs or bulk orders for our high-current flat-wire inductors. For any inquiries, please send an email to info@smdinductor.com. Zhenhua is available to provide you with inventory information, product quotations, and technical specifications for our flat-wire inductors.
Picture | Part Number | Inductance (µH)+20% | Irms (A) | Isat (A) | DCR Max (mΩ) | Applications | Action |
| 0.8~5.7 | 11.5~16.3 | 6.0~25.6 | 5.0~10 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
|
| 0.33~10 | 7.2~18 | 7.5~43 | 1.0~11 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
|
| 10~ 47 | 7.7~9.2 | 3.2~13.16 | 15~23.1 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
| 0.4~47 | 2.5~23 | 3.0~66 | 1.2~27 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
|
| 4.7~47 | 3.5~13 | 5.0~18.4 | 4.5~30 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
|
| 1.0~30 | 1.5~30 | 8.5~37 | 1.15~16.5 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; | |
|
| 1.0~30 | 8.6~36.3 | 11.5~48.1 | 1.09~19.55 | Servers. Graphics Cards. Industrial PC Servers. Multiphase Voltage Regulators. Battery-Powered Systems (BPS). Voltage Regulator Modules (VRM). Central Processing Units (CPU). Graphics Processing Units (GPU). | ; |

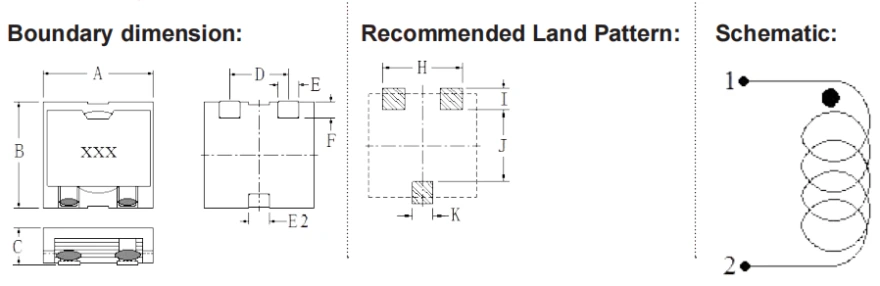

Shape and Dimensions:
A | B | C | D | E | E2 | F | H | I | J | K |
10.4Max | 10.6Max | 5.5Max | 5.5±0.5 | 2.5Ref | 1.5Ref | 2.0Ref | 8.2Ref | 2.5Ref | 5.8Ref | 2.4Ref |
13.1Max | 13.5Max | 5.8Max | 7.0±0.5 | 2.5Ref | 2.5Ref | 2.0Ref | 9.8Ref | 2.5Ref | 8.2Ref | 3.0Ref |
13.1Max | 13.5Max | 9.0Max | 7.0±0.5 | 2.5Ref | 2.5Ref | 2.0Ref | 9.8Ref | 2.5Ref | 8.0Ref | 3.0Ref |
14.9Max | 15.4Max | 8.2Max | 9.0±0.5 | 2.8Ref | 2.5Ref | 1.8Ref | 13Ref | 2.7Ref | 10Ref | 3.5Ref |
14.9Max | 15.4Max | 12.2Max | 9.0±0.5 | 2.8Ref | 2.5Ref | 1.8Ref | 13Ref | 2.7Ref | 10Ref | 3.5Ref |
17.3Max | 18.5Max | / | 10.9±0.5 | 2.6±0.3 | 3.0±0.3 | 3.0±0.5 | 15Ref | 4.5Ref | 10.9Ref | 4.3Ref |
19.9Max | 18.5Max | / | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17Ref | 2.5Ref | 10.9Ref | 4.3Ref |
