Flat Wire Surface Mount Inductor | 7510 (Custom)

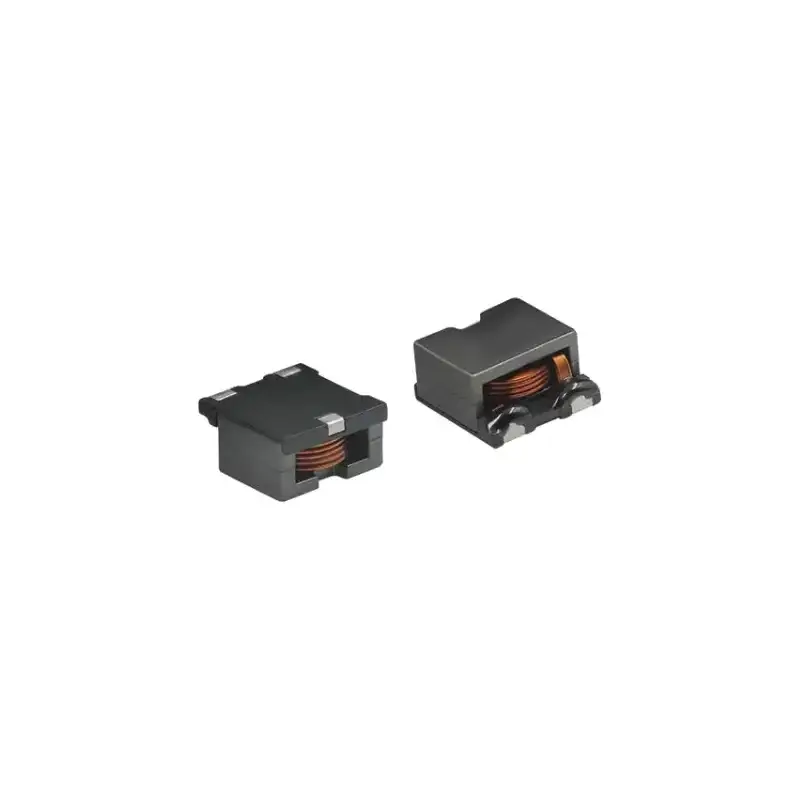

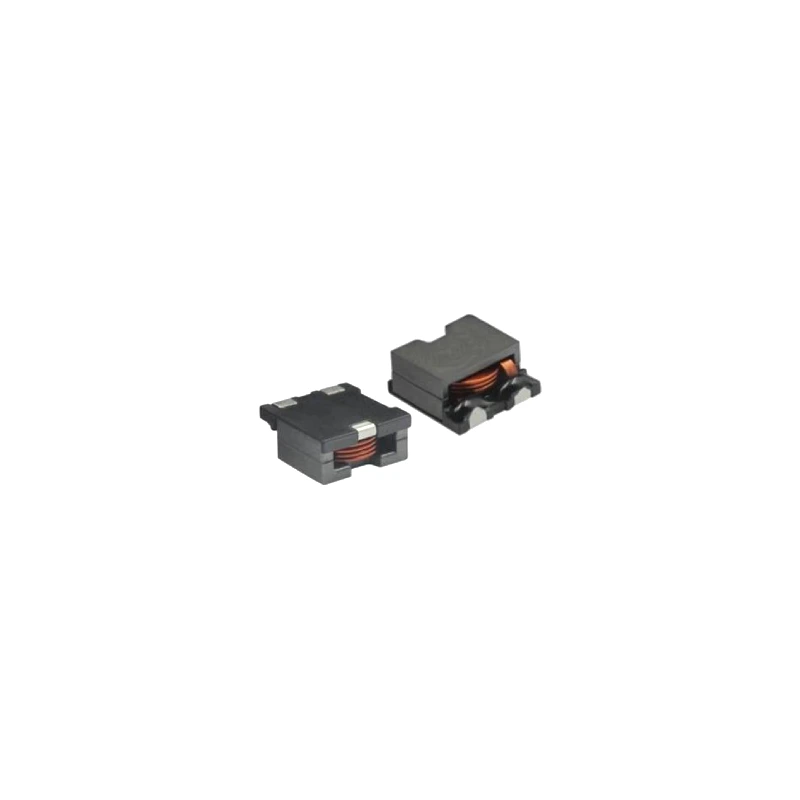

This high-current Surface Mount Device (SMD) power inductor uses a manganese-zinc ferrite core and flat wire windings, resulting in excellent saturation current and temperature-rise current characteristics. Additionally, this high-current SMD inductor features a three-pad terminal design, providing better mounting stability and vibration resistance on the circuit board. All raw materials meet RoHS and REACH regulations, and the product has a Moisture Sensitivity Level (MSL) rating of 1. Its maximum operating temperature is +125°c. Based on these features, this high-current inductor is ideal for harsh environments or various high-current power supply applications.
We can provide custom-designed high-current flat wire inductors. For any inquiries, please get in touch with us at info@smdinductor.com. Zhenhua Company provides inventory information, pricing, and technical specifications for flat wire inductors and offers wholesale pricing.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- High reliability
- With Insulating Base
- Secure 3-Pin Mounting
- Industrial standard footprint
- Magnetic shielded construction
- High efficiency, High power density
Applications
- Server, IPC Server, Multi-phase regulators, Graphics cards, battery power systems(BPS), Voltage Regulator Modules (VRMs), Central processing unit (CPU), Graphics processing unit (GPU).
Shape and Dimensions
| Part Number | Impedance (uH)+20% | Irms(A) | Isat(A) | DCR Max (mΩ) | Dimensions (mm) | ||||||||||
| A | B | C | D | E | E2 | F | H | I | J | K | |||||
| 7510-3R3 | 3.3 | 25.1 | 35.1 | 2.59 | 19.9Max | 18.5Max | \ | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref |
| 7510-4R7 | 4.7 | 25.1 | 25.5 | 2.59 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7510-300 | 30 | 8.6 | 11.5 | 19.55 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7580-1R0 | 1.0 | 36.3 | 46.6 | 1.09 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7580-6R8 | 6.8 | 12.7 | 21.3 | 8.74 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7580-100 | 10 | 11.7 | 15.8 | 10.12 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7590-1R5 | 1.5 | 30.2 | 48.1 | 1.55 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7590-150 | 15 | 10.7 | 14.7 | 12.65 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7595-2R2 | 2.2 | 27.2 | 43.6 | 2.07 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
| 7595-200 | 20 | 9.5 | 13.5 | 15.53 | 19.9Max | 18.5Max | 13.1±0.5 | 2.5±0.3 | 3.0±0.5 | 3.0±0.5 | 17.0Ref | 2.5Ref | 10.7Ref | 4.3Ref | |
