1.0uH 1.40A SMT Unshielded Power Inductors
SD Series SMT unshielded and shielded power inductors utilize an Mn-Zn core to provide high saturation current, efficiency, and breakdown voltage. This construction supports higher current handling, enhanced efficiency, high energy storage, and lower DC resistance, making these inductors ideal for various modern electronic applications.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- ROHS and REACH compliant.
- Miniature surface mount design.
- Ideal inductor for DC-DC conversion.
- High current rating, low D.C. resistance.
- Various package sizes and a wide inductance range.
Applications
- LED televisions.
- Portable computers.
- DC/DC converter and power supply for VTRs.

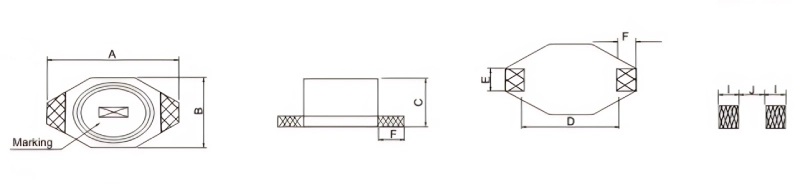

Shape and Dimensions
| Inductance (µH) | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | |||
| A | B | C | D | |||
| 1.0 | 0.040 | 1400 | 6.6 | 4.45 | 2.92 | 4.32 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20 days (most can finish within 1 week if urgently needed)
MOQ: 1 unit
Payment Terms: T/T, L/C or others for negotiation.
Free Samples Services: usually takes 3-5 working days after the customer’s request.
Tape and Reel Specification
| Parts per reel | Reel dimensions (mm) | Tape dimensions (mm) | ||||||||||
| 7″ (178mm) | 13″ (330mm) | A | B | C | D | E | W | P | Po | P1 | H | T |
| 500 | 2000* | 178/330 | 60/100 | 13 | 18,4 | 12,4 | 12 | 8 | 4 | 2 | 3,4 | 0,35 |

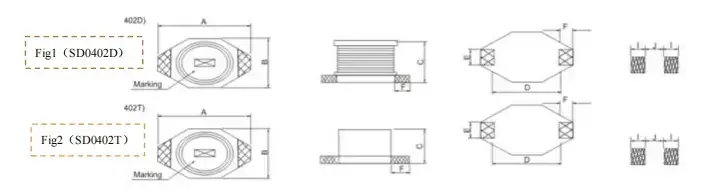

SD Series SMT Unshielded and Shielded Power Inductors
Detailed information including inductance, tolerance, rated current and DCR.
