Multilayer Chip Ceramics Inductors CH Series

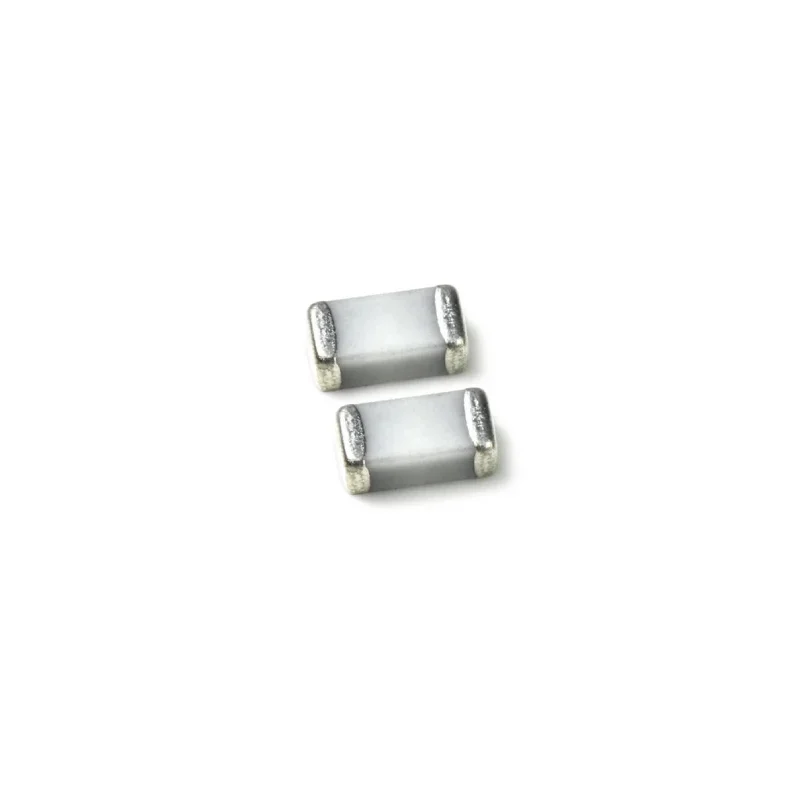

RF Ceramic Chip Inductor | CH2012

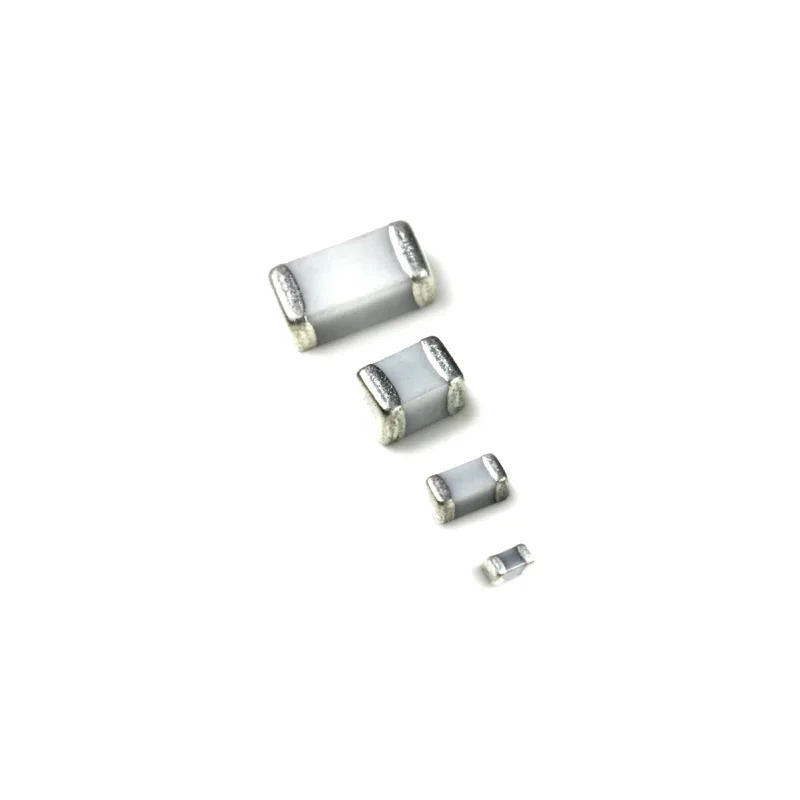

Ceramic chip inductors (multilayer structure) are suitable for high-frequency applications in various electronic systems, such as signal shaping and RF filtering. Zhenhua offers a wide range of high-frequency ceramic inductors in various sizes and specifications, featuring extremely low core loss, high Q value, and low inductance. Multilayer ceramic chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and compared to wire-wound inductors, multilayer chip inductors offer lower cost and smaller size. Ceramic high-frequency chip inductors feature high frequency, high self-resonant frequency (SRF), excellent Q value, and superior temperature stability. They provide stable inductance values in high-frequency circuits. The high-stability design meets the requirements of critical applications.
For any inquiries, please contact us at info@smdindutcor.com.
Zhenhua provides stock, pricing, and specifications information for multilayer ceramic chip inductors.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Category Multilayer Chip Inductors

Description

Features

High self-resonant frequency.
OPERATING TEMP: -55℃ ~ +125℃
Monolithic Structure for high reliability, Small size inductor.
Excellent solderability and high heat resistance, High Q factor.

Applications

Mobile communication equipment terminal.
High-frequency circuit, intermediate increase circuit.
RF circuit in telecommunication and other equipment.

Shape and Dimensions

Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	Dimensions (mm)
Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	L	W	T	a	A	B	C
CH2012H1N0	1.0	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H1N2	1.2	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H1N5	1.5	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H1N8	1.8	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H2N2	2.2	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H2N7	2.7	6000	0.10	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H3N3	3.3	6000	0.13	500	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H4N7	4.7	4500	0.20	400	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H5N6	5.6	4000	0.23	400	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H6N8	6.8	3650	0.25	400	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H8N2	8.2	3000	0.28	400	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H10N	10	2500	0.30	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H12N	12	2400	0.35	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H15N	15	2000	0.40	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H18N	18	1750	0.45	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H22N	22	1700	0.50	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H27N	27	1550	0.55	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H33N	33	1350	0.60	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H39N	39	1300	0.65	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H47N	47	1200	0.70	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H56N	56	1150	0.75	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H68N	68	1000	0.80	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012H82N	82	750	0.90	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR10	100	600	1.00	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR15	150	500	1.50	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR18	180	400	2.10	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR22	220	350	2.10	300	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR33	330	250	3.00	200	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR39	390	250	3.50	200	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
CH2012HR47	470	200	3.50	200	2.0±0.2	1.2±0.2	0.9±0.2	0.5±0.3	0.1	0.1	0.1
