Multilayer Chip Ceramics Inductors CH Series

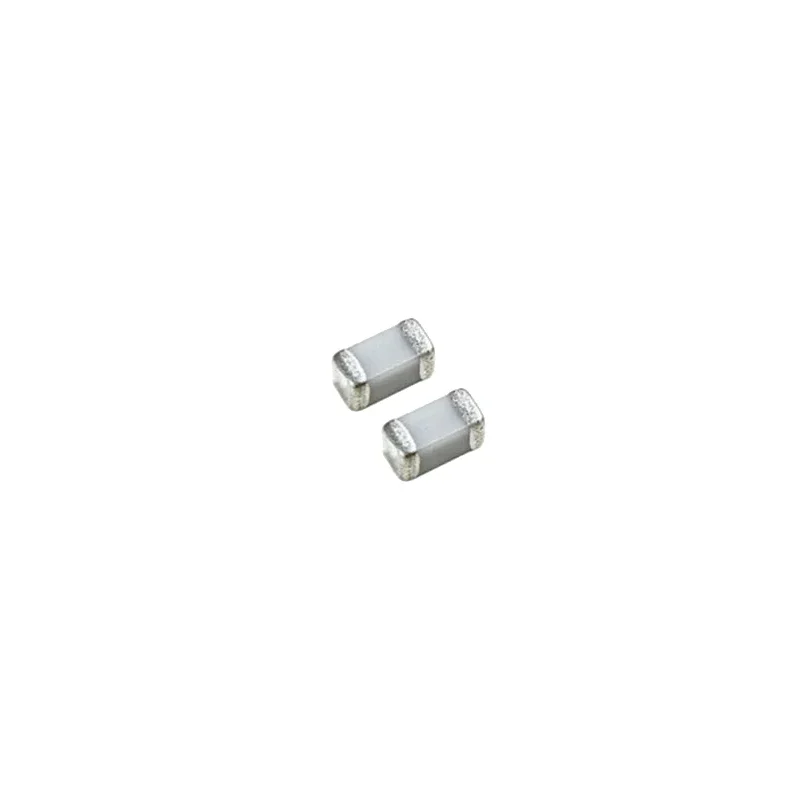

High Frequency Ceramic Chip Inductor | CH1005

Ceramic chip inductors (multilayer structure) are suitable for high-frequency applications in various electronic systems, such as signal shaping and RF filtering. Zhenhua offers a wide range of high-frequency ceramic inductors in various sizes and specifications, featuring extremely low core loss, high Q value, and low inductance. Multilayer ceramic chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and compared to wire-wound inductors, multilayer chip inductors offer lower cost and smaller size. Ceramic high-frequency chip inductors feature high frequency, high self-resonant frequency (SRF), excellent Q value, and superior temperature stability. They provide stable inductance values in high-frequency circuits. The high-stability design meets the requirements of critical applications.
For any inquiries, please contact us at info@smdindutcor.com.
Zhenhua provides stock, pricing, and specifications information for multilayer ceramic chip inductors.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Category Multilayer Chip Inductors

Description

Features

High self-resonant frequency.
OPERATING TEMP: -55℃ ~ +125℃
Monolithic Structure for high reliability, Small size inductor.
Excellent solderability and high heat resistance, High Q factor.

Applications

Mobile communication equipment terminal.
High-frequency circuit, intermediate increase circuit.
RF circuit in telecommunication and other equipment.

Shape and Dimensions

Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	Dimensions (mm)
Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	L	W	T	a	A	B	C
CH1005G1N0	1.0	10000	0.06	1000	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G1N2	1.2	10000	0.07	1000	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G1N5	1.5	6000	0.08	1000	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G1N8	1.8	6000	0.08	900	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G2N4	2.4	6000	0.10	800	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G2N7	2.7	6000	0.12	800	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G3N3	3.3	6000	0.13	800	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G3N9	3.9	4000	0.16	700	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G4N7	4.7	4000	0.16	700	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G5N6	5.6	4000	0.20	600	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G6N8	6.8	3900	0.20	600	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G8N2	8.2	3600	0.24	500	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G10N	10	3200	0.26	500	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G12N	12	3000	0.45	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G15N	15	2300	0.50	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G18N	18	2200	0.55	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G22N	22	2000	0.60	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G27N	27	1700	0.65	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G33N	33	1500	0.70	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G39N	39	1400	0.70	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G47N	47	1200	0.70	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G56N	56	1100	0.75	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G68N	68	900	0.85	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005G82N	82	800	1.00	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR10	100	700	1.20	300	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR15	150	500	1.60	200	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR18	180	400	1.90	200	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR22	220	350	2.40	200	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR33	330	350	2.80	150	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6
CH1005GR47	470	250	3.60	150	1.0±0.05	0.5±0.05	0.5±0.05	0.25±0.10	0.35	0.6	0.6

Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
