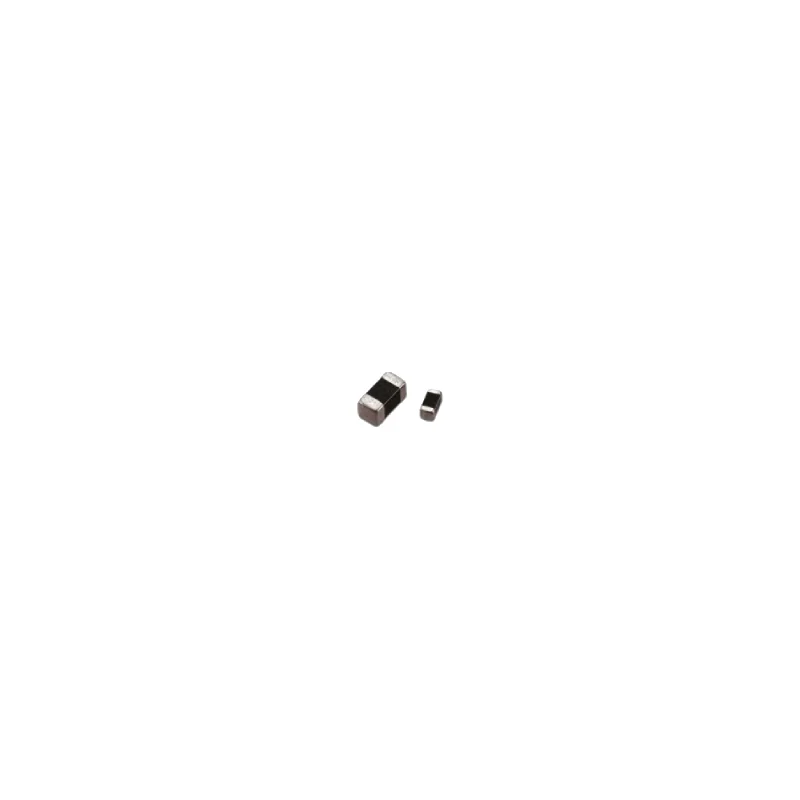

Multilayer Chip Ferrite Inductor – CI1005

Multilayer chip ferrite inductors are made from multiple layers of ceramic (ferrite) material. Compared to wire-wound inductors, multilayer chip inductors provide benefits such as lower cost and smaller size. These inductors are commonly used as chip beads to serve as EMI filters. However, in some applications where size is limited, customers may also opt to use multilayer products as inductors. For inquiries, please contact us by email at info@smdindutcor.com. Zhenhua offers information on inventory, pricing, and specifications of multilayer chip ferrite inductors.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

Category Multilayer Chip Inductors

Description

Features

Small size inductor.
No cross coupling due to magnetic shield.
Perfect shape for mounting with no directionality.
Operating temperature range: -55℃～125℃.
Excellent solderability and high heat resistance for reflow soldering or wave soldering.

Applications

Widely used in communications, video and audio.
Equipment, Computers, Remote control, ETC.

Shape and Dimensions

Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	Dimensions (mm)
Part Number	Inductance (nH)	SRF(Mhz) min	DCR Max (Ω)	Rated Current Max (mA)	A	B	C
CI1608A47N	0.047	320	0.15	300	0.35	0.6	0.6
CI1608A56N	0.056	320	0.15	300	0.35	0.6	0.6
CI1608A68N	0.068	280	0.20	300	0.35	0.6	0.6
CI1608A82N	0.082	280	0.20	300	0.35	0.6	0.6
CI1608AR10	0.10	235	0.20	250	0.35	0.6	0.6
CI1608AR12	0.12	220	0.25	250	0.35	0.6	0.6
CI1608AR15	0.15	200	0.25	250	0.35	0.6	0.6
CI1608AR18	0.18	185	0.30	250	0.35	0.6	0.6
CI1608AR22	0.22	170	0.30	250	0.35	0.6	0.6
CI1608AR27	0.27	150	0.40	250	0.35	0.6	0.6
CI1608AR33	0.33	135	0.40	250	0.35	0.6	0.6
CI1608AR39	0.39	125	0.50	200	0.35	0.6	0.6
CI1608AR47	0.47	125	0.50	200	0.35	0.6	0.6
CI1608AR56	0.56	115	0.60	150	0.35	0.6	0.6
CI1608AR68	0.68	105	0.65	150	0.35	0.6	0.6
CI1608AR82	0.82	100	0.70	150	0.35	0.6	0.6
CI1608B1R0	1.0	70	0.60	50	0.35	0.6	0.6
CI1608B1R2	1.2	60	0.80	25	0.35	0.6	0.6
CI1608B1R5	1.5	55	0.80	25	0.35	0.6	0.6
CI1608B1R8	1.8	50	0.95	25	0.35	0.6	0.6
CI1608B2R2	2.2	45	1.15	15	0.35	0.6	0.6
CI1608B2R7	2.7	40	1.35	15	0.35	0.6	0.6
CI1608B3R3	3.3	38	1.55	15	0.35	0.6	0.6
CI1608B3R9	3.9	36	1.70	15	0.35	0.6	0.6
CI1608B4R7	4.7	33	2.10	15	0.35	0.6	0.6
CI1608C5R6	5.6	22	1.55	5	0.35	0.6	0.6
CI1608C6R8	6.8	20	1.70	5	0.35	0.6	0.6
CI1608C8R2	8.2	18	2.10	5	0.35	0.6	0.6
CI1608C100	10	17	2.55	5	0.35	0.6	0.6
CI1608C120	12	15	2.10	5
CI1608D150	15	14	1.70	1
CI1608D180	18	13	1.85	1
CI1608D220	22	11	2.10	1
CI1608D270	27	10	2.75	1
CI1608D330	33	9	2.95	1

Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
