SMD Multilayer Ferrite Inductor | CI3216

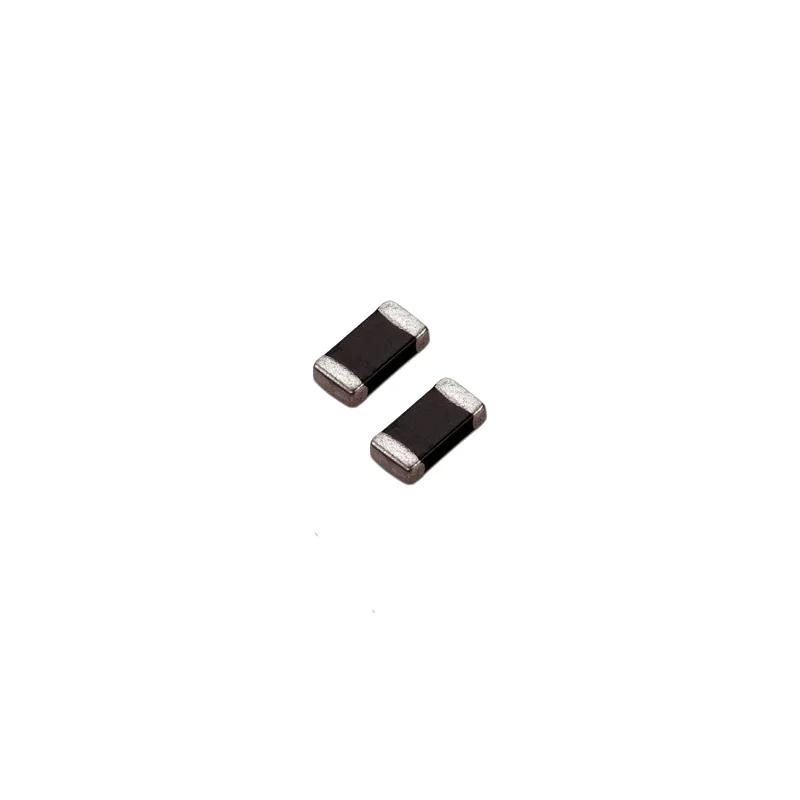

SMD multilayer chip inductor is formed by several ceramic (ferrite) material layers. Multilayer chip inductors feature a low cost and miniature size compared to the wire-wound inductor. Normally, the inductors of the multilayer structure will be chip beads that work as the EMI filter. However, for some applications, because of the limitation of the dimension, the customer also chooses the multilayer product which works as the inductor.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Small size inductor.
- No cross coupling due to magnetic shield.
- Perfect shape for mounting with no directionality.
- Operating temperature range: -55℃～125℃.
- Excellent solderability and high heat resistance for reflow soldering or wave soldering.
Applications
- Widely used in communications, video and audio.
- Equipment, Computers, Remote control, ETC.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||
| A | B | C | |||||
| CI3216A47N | 0.047 | 320 | 0.15 | 300 | 2.2 | 1.1 | 1.4 |
| CI3216A68N | 0.068 | 280 | 0.25 | 300 | 2.2 | 1.1 | 1.4 |
| CI3216A82N | 0.082 | 255 | 0.25 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR10 | 0.10 | 235 | 0.25 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR12 | 0.12 | 220 | 0.30 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR15 | 0.15 | 200 | 0.30 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR18 | 0.18 | 185 | 0.40 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR22 | 0.22 | 170 | 0.40 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR27 | 0.27 | 150 | 0.50 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR33 | 0.33 | 145 | 0.50 | 250 | 2.2 | 1.1 | 1.4 |
| CI3216AR39 | 0.39 | 135 | 0.50 | 200 | 2.2 | 1.1 | 1.4 |
| CI3216AR47 | 0.47 | 125 | 0.60 | 200 | 2.2 | 1.1 | 1.4 |
| CI3216AR56 | 0.56 | 112 | 0.70 | 150 | 2.2 | 1.1 | 1.4 |
| CI3216AR68 | 0.68 | 102 | 0.80 | 150 | 2.2 | 1.1 | 1.4 |
| CI3216AR82 | 0.82 | 100 | 0.90 | 150 | 2.2 | 1.1 | 1.4 |
| CI3216B1R0 | 1.0 | 75 | 0.40 | 100 | 2.2 | 1.1 | 1.4 |
| CI3216B1R2 | 1.2 | 65 | 0.50 | 100 | 2.2 | 1.1 | 1.4 |
| CI3216B1R5 | 1.5 | 60 | 0.50 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B1R8 | 1.8 | 55 | 0.50 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B2R2 | 2.2 | 50 | 0.60 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B2R7 | 2.7 | 45 | 0.60 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B3R3 | 3.3 | 41 | 0.70 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B3R9 | 3.9 | 38 | 0.80 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216B4R7 | 4.7 | 35 | 0.90 | 50 | 2.2 | 1.1 | 1.4 |
| CI3216C5R6 | 5.6 | 32 | 0.70 | 25 | 2.2 | 1.1 | 1.4 |
| CI3216C6R8 | 6.8 | 29 | 0.80 | 25 | 2.2 | 1.1 | 1.4 |
| CI3216C8R2 | 8.2 | 26 | 0.90 | 25 | 2.2 | 1.1 | 1.4 |
| CI3216C100 | 10 | 24 | 1.00 | 25 | 2.2 | 1.1 | 1.4 |
| CI3216C120 | 12 | 22 | 1.05 | 15 | 2.2 | 1.1 | 1.4 |
| CI3216D150 | 15 | 19 | 0.70 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D180 | 18 | 18 | 0.70 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D220 | 22 | 16 | 0.90 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D270 | 27 | 14 | 0.90 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D330 | 33 | 13 | 1.05 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D390 | 39 | 11 | 3.00 | 5 | 2.2 | 1.1 | 1.4 |
| CI3216D470 | 47 | 10 | 3.40 | 5 | 2.2 | 1.1 | 1.4 |
