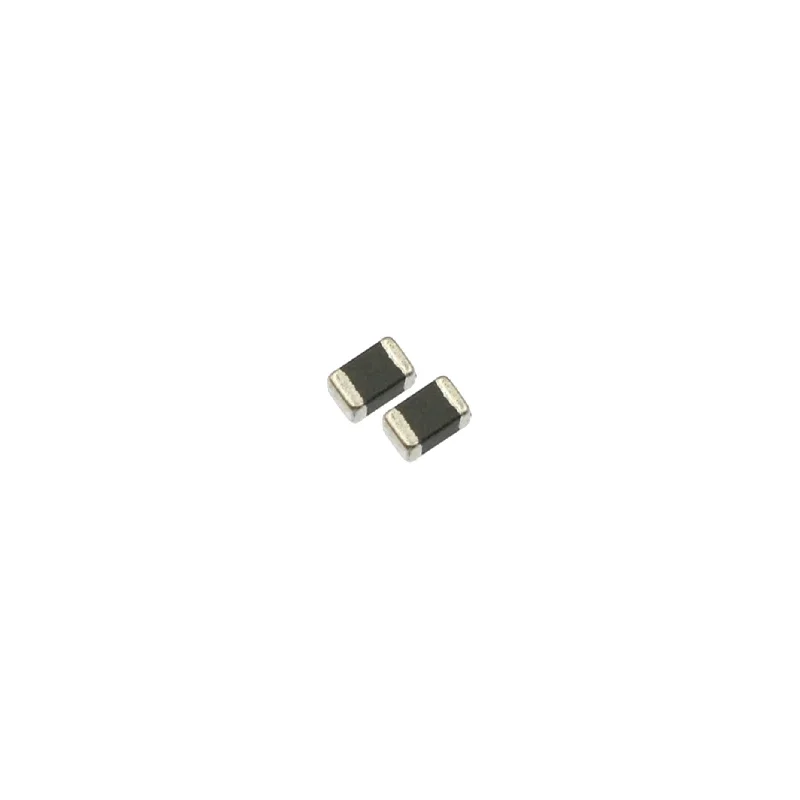

High Current Multilayer Ferrite Inductors | PI2520
Zhenhua Company offers a variety of multilayer ferrite inductors that feature high frequency, high self-resonant frequency (SRF), excellent quality factor (Q), and superior temperature stability. They also boast stable inductance values and a highly stable design, making them suitable for high-frequency circuits and capable of meeting critical application requirements. Multilayer chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and are more cost-effective and smaller than wire-wound inductors. We can customize multilayer ferrite inductors according to customer requirements. For inquiries, please contact us at info@smdinductor.com. Zhenhua Company provides inventory information, pricing, and technical specifications for multilayer ferrite inductors and offers wholesale pricing.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Offset current is greatly increased.
- Operating temperature: -55℃~+125℃.
- Monolithic structure, high reliability, small inductor size.
- No cross coupling due to magnetic shielding. Low DC resistance.
Applications
- Tablet terminals, digital cameras, camcorders, hard disks, power modules, etc.
- DC-DC conversion circuits for mobile phones, wearable devices, DVCs, HDDs, etc.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||
| A | B | C | |||||
| PI2520FR47 | 0.47 | 100 | 0.07±30% | 1800 | 1.5 | 1.0 | 1.2 |
| PI2520FR68 | 0.68 | 90 | 0.09±30% | 1700 | 1.5 | 1.0 | 1.2 |
| PI2520F1R0 | 1.0 | 60 | 0.11±30% | 1600 | 1.5 | 1.0 | 1.2 |
| PI2520F1R5 | 1.5 | 50 | 0.13±30% | 1500 | 1.5 | 1.0 | 1.2 |
| PI2520F2R2 | 2.2 | 40 | 0.17±30% | 1300 | 1.5 | 1.0 | 1.2 |
| PI2520F3R3 | 3.3 | 30 | 0.18±30% | 1200 | 1.5 | 1.0 | 1.2 |
| PI2520F4R7 | 4.7 | 25 | 0.20±30% | 1100 | 1.5 | 1.0 | 1.2 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
PI Series High Current Multilayer Ferrite Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
