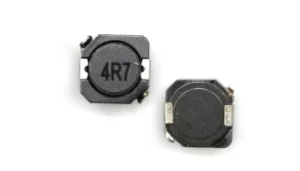

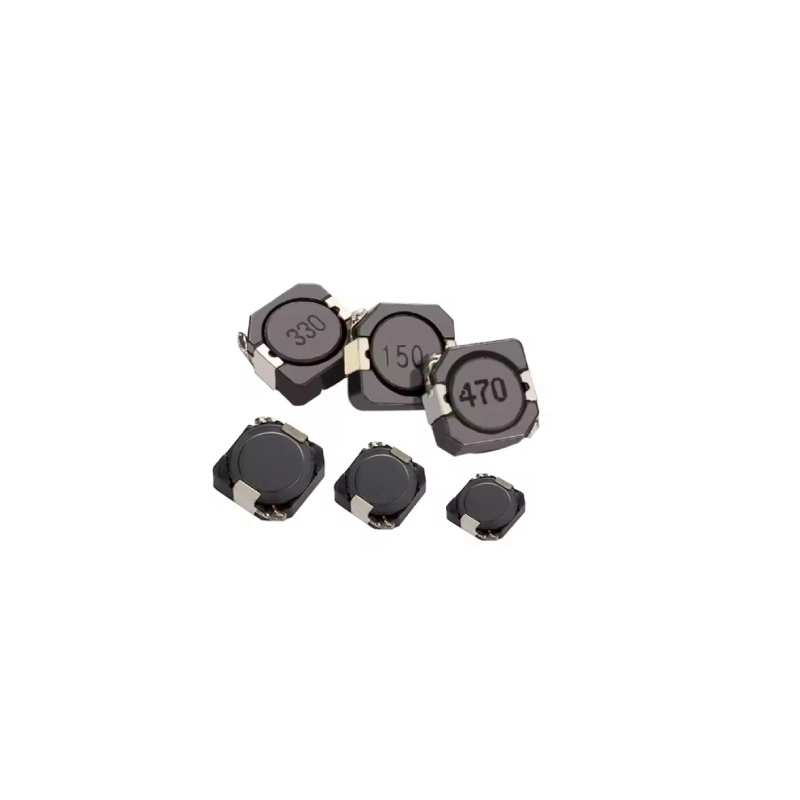

SMD Shielded Inductors | SMRH104R
Surface-mount shielded inductors are designed to reduce electromagnetic interference (EMI) by enclosing the coil in a shielded housing. The housing is typically made from a ring core, which is used to cover the areas around the coil and create a closed magnetic circuit. This helps to block external and internal magnetism from affecting the performance of the inductor, which can improve its reliability and accuracy in applications where EMI is a concern. The use of a shielded housing can also help to protect the inductor from external sources of interference, such as other electronic devices or electrical noise.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- ROHS and REACH compliant.
- High current rating, low DC resistance.
- Shielded power inductor.
- Packed in embossed carrier tape and can bevse by automatic mounting machine.
Applications
- AP Routers, STBs and LCD TVs.
- Monitors, Game consoles and LED lighting.
- Notebook computers, DC-DC converters, etc.
- Automotive Electronics(engine control units (ECUs), infotainment systems, and various sensors)

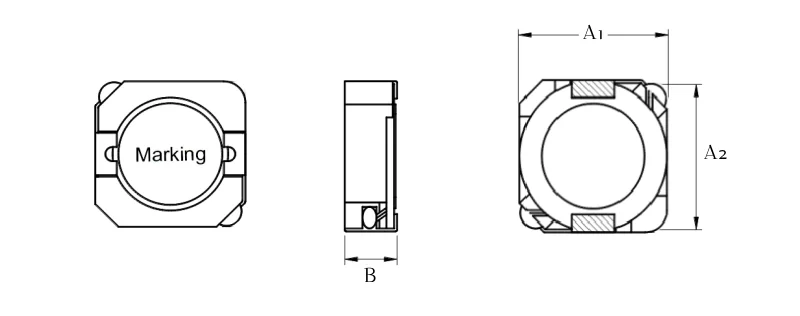

Shape and Dimensions
| Part Number | Inductance (µH) | DCR Max (mΩ) | Rated Current Max (mA) | Mounting | Dimensions (mm) | ||
| A 1 | A2 | B | |||||
| SMRH104R-1R5 | 1.5 | 0.0081 | 10000 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-2R5 | 2.5 | 0.0105 | 7500 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-3R8 | 3.8 | 0.013 | 6000 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-5R2 | 5.2 | 0.022 | 5500 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-7R0 | 7.0 | 0.027 | 4800 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-100 | 10 | 0.035 | 4000 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-150 | 15 | 0.050 | 3600 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-220 | 22 | 0.073 | 2900 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-330 | 33 | 0.093 | 2300 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-470 | 47 | 0.128 | 2100 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-680 | 68 | 0.213 | 1500 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-101 | 100 | 0.304 | 1360 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-151 | 150 | 0.506 | 1150 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-221 | 220 | 0.756 | 920 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
| SMRH104R-331 | 330 | 1.090 | 700 | SM | 10.0±0.3 | 10.6 MAX | 4.0 MAX |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
Tape and Reel Specification
| Parts Per Reel | Reel Dimensions (mm) | Tape Dimensions (mm) | ||||||||||
| 7″ (178mm) | 13″ (330mm) | A | B | C | D | E | W | P | Po | P1 | H | T |
| 350 | 1500* | 178/330 | 60/100 | 13 | 18.4 | 12.4 | 16 | 12 | 4 | 2 | 3.7 | 0.4 |
SMRH Series SMD Shielded Power Inductors
Detailed information including inductance, tolerance, rated current and DCR.
