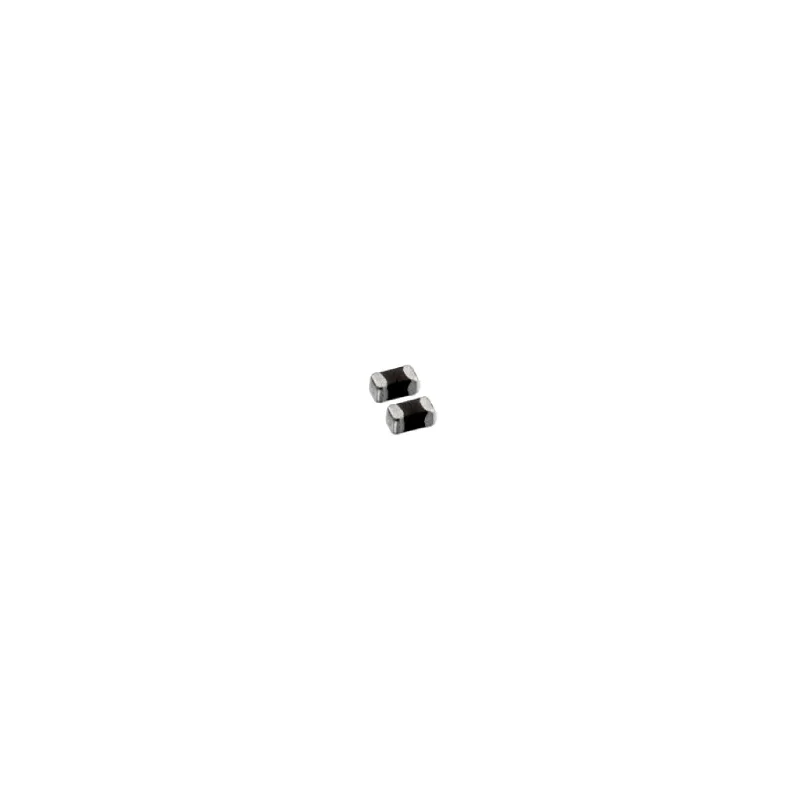

High Current Chip Ferrite Inductor | PI1608
Zhenhua Company offers a variety of multilayer ferrite inductors that feature high frequency, high self-resonant frequency (SRF), excellent quality factor (Q), and superior temperature stability. They also boast stable inductance values and a highly stable design, making them suitable for high-frequency circuits and capable of meeting critical application requirements. Multilayer chip inductors are available in sizes ranging from 0603 (0201) to 3216 (1206), and are more cost-effective and smaller than wire-wound inductors. We can customize multilayer ferrite inductors according to customer requirements. For inquiries, please contact us at info@smdinductor.com. Zhenhua Company provides inventory information, pricing, and technical specifications for multilayer ferrite inductors and offers wholesale pricing.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- Offset current is greatly increased.
- Operating temperature: -55℃~+125℃.
- Monolithic structure, high reliability, small inductor size.
- No cross coupling due to magnetic shielding. Low DC resistance.
Applications
- Tablet terminals, digital cameras, camcorders, hard disks, power modules, etc.
- DC-DC conversion circuits for mobile phones, wearable devices, DVCs, HDDs, etc.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||
| A | B | C | |||||
| PI1608FR22 | 0.22 | 150 | 0.06±30% | 380 | 0.6 | 1.0 | 0.8 |
| PI1608FR33 | 0.33 | 120 | 0.08±30% | 350 | 0.6 | 1.0 | 0.8 |
| PI1608FR47 | 0.47 | 105 | 0.10±30% | 300 | 0.6 | 1.0 | 0.8 |
| PI1608FR68 | 0.68 | 85 | 0.16±30% | 220 | 0.6 | 1.0 | 0.8 |
| PI1608FR82 | 0.82 | 85 | 0.18±30% | 220 | 0.6 | 1.0 | 0.8 |
| PI1608F1R0 | 1.0 | 75 | 0.20±30% | 200 | 0.6 | 1.0 | 0.8 |
| PI1608F1R5 | 1.5 | 55 | 0.25±30% | 180 | 0.6 | 1.0 | 0.8 |
| PI1608F1R8 | 1.8 | 55 | 0.30±30% | 180 | 0.6 | 1.0 | 0.8 |
| PI1608F2R2 | 2.2 | 50 | 0.50±30% | 150 | 0.6 | 1.0 | 0.8 |
| PI1608F4R7 | 4.7 | 33 | 0.75±30% | 80 | 0.6 | 1.0 | 0.8 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
PI Series High Current Multilayer Ferrite Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
