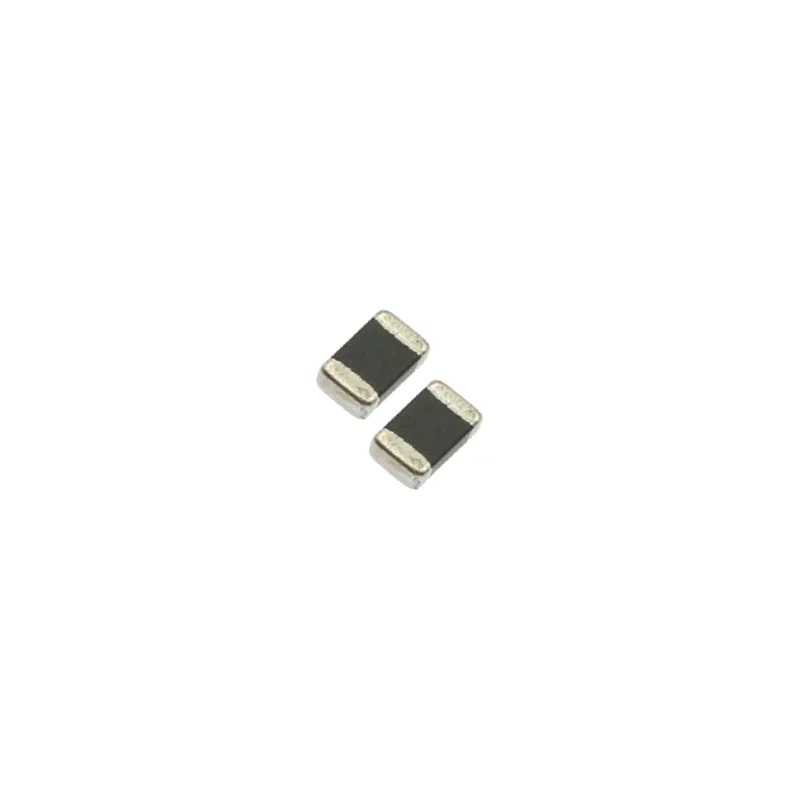

High Current Chip Ferrite Inductors | PI3216
High current multilayer ferrite inductors feature high frequency, high SRF, Excellent Q factor, and superior temperature stability. They also feature stable inductance and high stability design in high-frequency circuits, meeting critical needs. Multilayer chip inductors range in size from 0603 (0201) to 3216 (1206), and they offer lower cost and smaller size than wire-wound inductors.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- The offset current is greatly increased.
- Operating temperature: -55℃~+125℃.
- Monolithic structure, high reliability, small inductor size.
- No cross coupling, low DC resistance due to magnetic shielding.
Applications
- Tablet terminals, digital cameras, camcorders, hard disks, power modules, etc.
- DC-DC conversion circuits for mobile phones, wearable devices, DVCs, HDDs, etc.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||
| A | B | C | |||||
| PI3216F1R0 | 1.0 | 60 | 0.15±30% | 1200 | 2.2 | 1.1 | 1.4 |
| PI3216F1R5 | 1.5 | 60 | 0.17±30% | 1000 | 2.2 | 1.1 | 1.4 |
| PI3216F2R2 | 2.2 | 50 | 0.24±30% | 900 | 2.2 | 1.1 | 1.4 |
| PI3216F3R3 | 3.3 | 45 | 0.30±30% | 800 | 2.2 | 1.1 | 1.4 |
| PI3216F4R7 | 4.7 | 41 | 0.30±30% | 800 | 2.2 | 1.1 | 1.4 |
| PI3216F6R8 | 6.8 | 35 | 0.38±30% | 700 | 2.2 | 1.1 | 1.4 |
| PI3216F8R2 | 8.2 | 32 | 0.42±30% | 500 | 2.2 | 1.1 | 1.4 |
| PI3216F100 | 10 | 29 | 0.45±30% | 500 | 2.2 | 1.1 | 1.4 |
| PI3216F120 | 12 | 26 | 0.55±30% | 300 | 2.2 | 1.1 | 1.4 |
| PI3216F150 | 15 | 24 | 0.55±30% | 300 | 2.2 | 1.1 | 1.4 |
| PI3216F220 | 22 | 19 | 0.65±30% | 100 | 2.2 | 1.1 | 1.4 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
PI Series High Current Multilayer Ferrite Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
