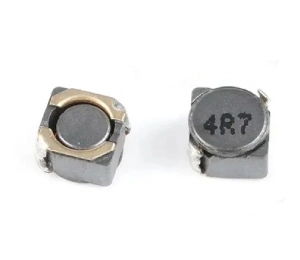

SMRH2 Series SMD Shielded Power Inductors
We offer power inductors in various sizes and shapes, including through-hole and surface-mount options, for switching power supplies, DC-DC converters, and EMI filtering applications. SMD shielded power inductors have high saturation current and wide inductance range, while non-shielded power inductors are particularly suitable for high-volume applications with strict cost requirements. We also offer molded power inductors with a metal alloy powder structure, which have the advantages of low core loss, reduced buzzing noise, and low DC resistance at ultra-high currents. If you have any application requirements, please feel free to contact us.
Picture | Part Number | Max Size(mm) | Inductance (µH) | DCR Max (Ω) | Rated Current Max (mA) | Applications | Series Spec PDF |
 | 3.3 x 3.3 x 1.4 | 1.5µH ~ 22µH | 0.08Ω ~ 1.05Ω | 210mA ~ 880mA | |||
| 3.3 x 3.3 x 1.7 | 1.5µH ~ 33µH | 0.075Ω ~ 1.20Ω | 220mA ~ 1000mA | |||
| 3.3 x 3.3 x 2.1 | 1.5µH ~ 47µH | 0.049Ω ~ 1.40Ω | 200mA ~ 1100mA | |||
| 4.0 x 4.0 x 1.9 | 2.2µH ~ 47µH | 0.09Ω ~ 1.00Ω | 210mA ~ 800mA | |||
| 4.0 x 4.0 x 2.1 | 1.0µH ~ 82µH | 0.045Ω ~ 2.90Ω | 150mA ~ 1400mA | |||
| 4.0 x 4.0 x 3.1 | 1.0µH ~ 270µH | 0.09Ω ~ 5.60Ω | 200mA ~ 2300mA | |||
| 5.0 x 5.0 x 2.1 | 1.0µH ~ 180µH | 0.03Ω ~ 3.10Ω | 180mA ~ 2300mA | |||
| 5.0 x 5.0 x 3.1 | 1.2µH ~ 180µH | 0.025Ω ~ 1.50Ω | 210mA ~ 2500mA | |||
| 6.0 x 6.0 x 2.1 | 4.1µH ~ 100µH | 0.075Ω ~ 1.35Ω | 260mA ~ 2000mA | |||
| 6.0 x 6.0 x 3.1 | 2.6µH ~ 100µH | 0.025Ω ~ 0.60Ω | 350mA ~ 2500mA | |||
| 7.0 x 7.0 x 3.1 | 3.0µH ~ 82µH | 0.024Ω ~ 0.39Ω | 600mA ~ 3000mA | |||
| 7.0 x 7.0 x 4.1 | 3.3µH ~ 100µH | 0.030Ω ~ 0.35Ω | 650mA ~ 3500mA |
