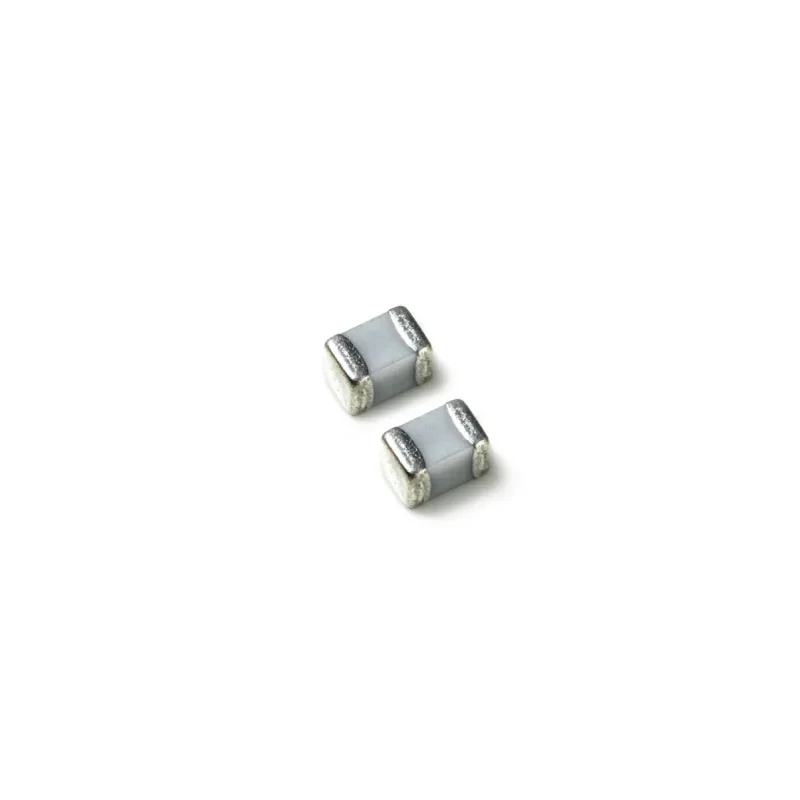

High SRF Ceramic Chip Inductor_CH1608
Ceramic high frequency chip inductors have high frequency, high SRF, excellent Q value and superior temperature stability. Stable inductance in high frequency circuits. High stability design can meet critical needs. High frequency ceramic inductors are available in different sizes and features, with very low iron loss, high Q value and low inductance value. Multilayer ceramic chip inductors range in size from 0603 (0201) to 3216 (1206), and compared with wire wound inductors, multilayer chip inductors have the characteristics of lower cost and smaller size.
Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month
Description
Features
- High self-resonant frequency.
- OPERATING TEMP: -55℃ ~ +125℃
- Monolithic Structure for high reliability, Small size inductor.
- Excellent solderability and high heat resistance, High Q factor.
Applications
- Mobile communication equipment terminal.
- High-frequency circuit, intermediate increase circuit.
- RF circuit in telecommunication and other equipment.
Shape and Dimensions
| Part Number | Inductance (nH) | SRF(Mhz) min | DCR Max (Ω) | Rated Current Max (mA) | Dimensions (mm) | ||
| A | B | C | |||||
| CH1608H1N0 | 1.0 | 10000 | 0.05 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H1N2 | 1.2 | 10000 | 0.10 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H1N5 | 1.5 | 6000 | 0.10 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H1N8 | 1.8 | 6000 | 0.12 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H2N2 | 2.2 | 6000 | 0.16 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H2N7 | 2.7 | 6000 | 0.20 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H3N3 | 3.3 | 6000 | 0.22 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H3N9 | 3.9 | 6000 | 0.25 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H4N7 | 4.7 | 6000 | 0.28 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H5N6 | 5.6 | 5000 | 0.30 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H6N8 | 6.8 | 5000 | 0.30 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H8N2 | 8.2 | 4500 | 0.30 | 500 | 0.6 | 1.0 | 0.8 |
| CH1608H10N | 10 | 3500 | 0.40 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H12N | 12 | 2800 | 0.45 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H15N | 15 | 2300 | 0.45 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H18N | 18 | 2200 | 0.50 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H22N | 22 | 2000 | 0.55 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H27N | 27 | 1700 | 0.60 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H33N | 33 | 1500 | 0.65 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H39N | 39 | 1400 | 0.70 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H47N | 47 | 1200 | 1.00 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H56N | 56 | 1000 | 1.00 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H68N | 68 | 900 | 1.00 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608H82N | 82 | 800 | 1.00 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR10 | 100 | 700 | 1.00 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR12 | 120 | 600 | 1.20 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR15 | 150 | 500 | 1.20 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR18 | 180 | 400 | 1.40 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR22 | 220 | 350 | 1.50 | 300 | 0.6 | 1.0 | 0.8 |
| CH1608HR27 | 270 | 300 | 1.80 | 300 | 0.6 | 1.0 | 0.8 |
Certification: REACH, ROSH, ISO9001, ISO14001，
Packing: Tape and Reel
Delivery date: 7-20days (most can finish within 1 week if urgent needed)
MOQ: 1 unit
Payment Term: T/T, L/C or others for negotiation.
Free Sample Services: usually take 3-5 working days after customs need them.
CH Series Multilayer Chip Ceramic Inductors
Detailed informations including inductance, tolerance, rated current and DCR.
